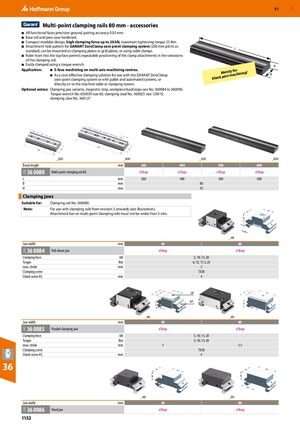

Multi-point clamping rails 80 mm - accessories

• All functional faces precision ground, pairing accuracy 0.03 mm.
• Base rail and jaws case hardened.
• Compact modular design, high clamping force up to 20 kN, maximum tightening torque 25 Nm.
• Attachment hole pattern for GARANT ZeroClamp zero point clamping system (200 mm pitch) as standard, can be mounted on clamping plates or grid plates, or using table clamps.
• Ruler inset into the top face permits repeatable positioning of the clamp attachments in the serrations of the clamping rail.
• Easily clamped using a torque wrench.

Application: 5-face machining on multi-axis machining centres.

• As a cost-effective clamping solution for use with the GARANT ZeroClamp zero-point clamping system or with pallet and automated systems, or directly on to the machine table or clamping towers.

Optional extras: Clamping jaw variants, magnetic strip, workpiece backstops see No. 360084 to 360096. Torque wrench No. 656050 size 60, clamping stud No. 360025 size 12M10, clamping claw No. 360127

L

H Mainly for B t machining! blank par

_260 _400 _500 _600

Clamping jaws

Suitable for: Clamping rail No. 360080.

Note: For use with clamping rails from revision 3 onwards (see illustration). Attachment bar on multi-point clamping rails must not be wider than 5 mm.

_48

Clamping screw TX30

Shank screw AF mm 4

1

AF AF 1

_48 _80

Clamping screw TX30

Shank screw AF mm 4

1

36

_48 _80
