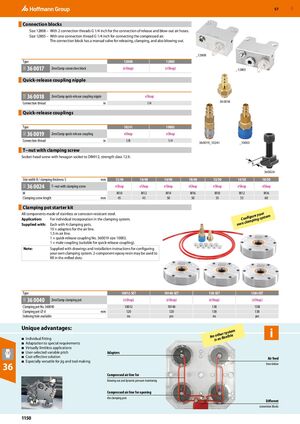

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 1150
Навигация
Каталог Hoffmann Group ручной и измерительный инструмент
Каталог Hoffmann Group режущий и вспомогательный инструмент
Производственная мебель и системы хранения Hoffmann Group 2026
Каталог Hoffmann Group токарный инструмент
Каталог Hoffmann Group запасные части, оснастка и СИЗ
Connection blocks
Size 12808 – With 2 connection threads G 1/4 inch for the connection of release and blow-out air hoses. Size 12805 – With one connection thread G 1/4 inch for connecting the compressed air. The connection block has a manual valve for releasing, clamping, and also blowing out.
_12808
| Type | 12808 | 12805 | ||
| 36 0017 | ZeroClamp connection block | (eShop) | (eShop) |
_12805
Quick-release coupling nipple
36 0018 ZeroClamp quick-release coupling nipple eShop
Connection thread in 1/4 36 0018
Quick-release couplings
| Type | 10241 | 10003 | |||
| 36 0019 | ZeroClamp quick-release coupling | eShop | eShop | ||
| Connection thread | in | 1/8 | 1/4 |
36 0019_10241 _10003
T−nut with clamping screw
Socket-head screw with hexagon socket to DIN912, strength class 12.9. B 36 0024
| Slot width B / clamping thickness S | mm | 12/40 | 14/40 | 16/40 | 18/40 | 12/50 | 14/50 | 18/50 | ||
| 36 0024 | T−nut with clamping screw | eShop | eShop | eShop | eShop | eShop | eShop | eShop | ||
| M | M10 | M12 | M14 | M16 | M10 | M12 | M16 | |||
| Clamping screw length | mm | 45 | 45 | 50 | 50 | 55 | 55 | 60 |
Clamping pot starter kit
All components made of stainless or corrosion-resistant steel. our em
| Application: | For individual incorporation in the clamping system. | Configure y |
| Supplied with: | Each with 4 clamping pots. | own clamping syst |
10 × adapters for the air line. 1.5 m air line. 1 × quick-release coupling No. 360019 size 10003. 1 × male coupling (suitable for quick-release coupling).
Note: Supplied with drawings and installation instructions for configuring your own clamping system. 2-component epoxy resin may be used to fill in the milled slots.
| Type | 10012-SET | 10148-SET | 138-SET | 138I-SET | |||||
| 36 0040 | ZeroClamp clamping pot | (eShop) | (eShop) | (eShop) | (eShop) | ||||
| Clamping pot No. 360040 | 10012 | 10148 | 138 | 138I | |||||
| Clamping pot ⌀ d | mm | 120 | 120 | 138 | 138 | ||||
| Indexing hole available | no | yes | no | yes |
Unique advantages: em Individual fitting No other syst
- is as flexible
- Adaptation to special requirements
- Virtually limitless applications
- User-selected variable pitch Adapters
- Cost-effective solution Air feed
36 Especially versatile for jig and tool making from below Compressed air line for blowing out and dynamic pressure monitoring Compressed air line for opening the clamping pots Different connection blocks
