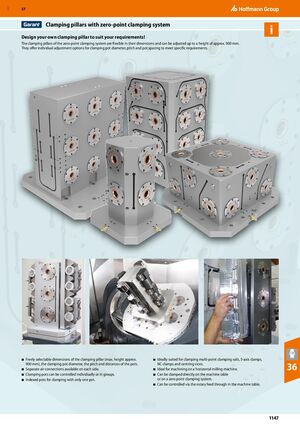

Clamping pillars with zero-point clamping system

Design your own clamping pillar to suit your requirements!

The clamping pillars of the zero-point clamping system are flexible in their dimensions and can be adjusted up to a height of approx. 900 mm. They offer individual adjustment options for clamping pot diameter, pitch and pot spacing to meet specific requirements.

• Freely selectable dimensions of the clamping pillar (max. height approx.
• Ideally suited for clamping multi-point clamping rails, 5-axis clamps, 36

900 mm), the clamping pot diameter, the pitch and distances of the pots. NC clamps and centring vices.

• Separate air connections available on each side.
• Ideal for machining on a horizontal milling machine.
• Clamping pots can be controlled individually or in groups.
• Can be clamped directly on the machine table

Indexed pots for clamping with only one pot. or on a zero point clamping system.

• Can be controlled via the rotary feed through in the machine table.
