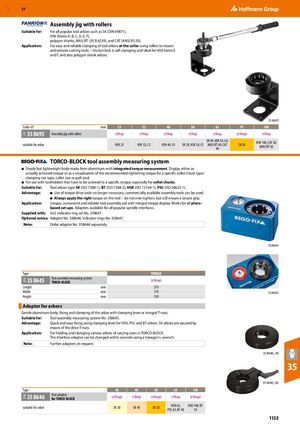

Assembly jig with rollers
Suitable for: For all popular tool arbors such as SK (DIN 69871), HSK (forms A, B, C, D, E, F), polygon shanks, MAS/BT (JIS B 6339), and CAT (ANSI B5.50).
Application: For easy and reliable clamping of tool arbors at the collar using rollers to mount and remove cutting tools − friction lock is self-clamping and ideal for HSK forms E and F, and also polygon shank arbors.
| 35 8695 | |||||||||
| Collar ⌀ | mm | 25 | 32 | 40 | 50 | 63 | 97 | 100 | |
| 33F 35 8695 | Assembly jig with rollers | eShop | eShop | eShop | eShop | eShop | (eShop) | eShop | |
| suitable for arbor | HSK 25 | HSK 32; C3 | HSK 40; C4 | SK 30; HSK 50; C5 | SK 40; HSK 63; C6; MAS/BT 40; CAT 40 | SK 50 | HSK 100; CAT 50; MAS/BT 50 |
TORCO-BLOCK tool assembly measuring system
- Sturdy but lightweight body made from aluminium with integrated torque measurement. Display either as actually achieved torque or as a visualisation of the recommended tightening torque for a specific collet chuck type/ clamping nut type, collet size or pull stud.
- For use with toolholders that have to be screwed to a specific torque, especially for collet chucks.
| Suitable for: | Tool arbors type SK (ISO 7388-1), BT (ISO 7388-2), HSK (ISO 12164-1), PSC (ISO 26623-1). |
| Advantage: | ■ Use of torque drive tools no longer necessary, commercially available assembly tools can be used. |
- Always apply the right torque on the tool – do not over-tighten, but still ensure a secure grip.
| Application: | Unique, convenient and reliable tool assembly aid with integral torque display. Works for all pliers- |
| based set-ups. Adapters available for all popular spindle interfaces. | |
| Supplied with: | Incl. indicator ring set No. 358647. |
| Optional extras: Adaptor No. 358646, indicator rings No. 358647. | |
| Note: | Order adaptor No. 358646 separately. |
35 8645
| Type | TORQUE | ||
| 30W 35 8645 | Tool assembly measuring system TORCO-BLOCK | (eShop) | |
| Length | mm | 270 | |
| Width | mm | 170 | |
| Height | mm | 130 |
Adaptor for arbors
Gentle aluminium body, fixing and clamping of the arbor with clamping lever or integral T-nuts.
| Suitable for: | Tool assembly measuring system No. 358645. |
| Advantage: | Quick and easy fixing using clamping lever for HSK, PSC and BT arbors. SK arbors are secured by |
| means of the drive T-nuts. | |
| Application: | For holding and clamping various arbors of varying sizes in TORCO-BLOCK. |
| The interface adaptor can be changed within seconds using a hexagon L-wrench. | |
| Note: | Further adapters on request. |
35 8646_40
35
35 8646_60
| Type | 30 | 40 | 50 | 63 | 100 | |
| 30W 35 8646 | Tool adaptor for TORCO-BLOCK | (eShop) | eShop | (eShop) | eShop | (eShop) |
| suitable for arbor | SK 30 | SK 40 | SK 50 | HSK 63; PSC 63; BT 40 | HSK 100; BT 50 |
