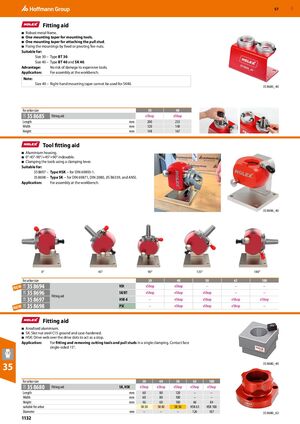

Fitting aid

  • Robust metal frame.
  • One mounting taper for mounting tools.
  • One mounting taper for attaching the pull stud.
  • Fixing the mountings by fixed or pivoting Tee-nuts.

Suitable for: Size 30 – Type BT 30. Size 40 – Type BT 40 and SK 40.

Advantage: No risk of damage to expensive tools.

Application: For assembly at the workbench.

Note: Size 40 – Right-hand mounting taper cannot be used for SK40. 35 8685_40

forarbor size3040
32B 35 8685 Fitting aideShopeShop
Lengthmm200253
Widthmm120140
Heightmm148167

Tool fitting aid

  • Aluminium housing.
  • 0°-45°-90°/+45°+90° indexable.
  • Clamping the tools using a clamping lever.

Suitable for: 35 8697 – Type HSK − for DIN 69893-1. 35 8698 – Type SK − for DIN 69871, DIN 2080, JIS B6339, and ANSI.

Application: For assembly at the workbench.

35 8696_40

0°45°90°135°180°
forarbor size30405063100
32B 35 8694 NEWVDIeShopeShop–––
32B 35 8696Fitti idSK/BTeShopeShopeShop––
32B 35 8697ng aHSK-A–eShopeShopeShopeShop
32B 35 8698 NEWPSC–eShopeShopeShop–

Fitting aid

  • Anodised aluminium.
  • SK: Slot nut steel C15 ground and case-hardened.
  • HSK: Drive web over the drive slots to act as a stop.

Application: For fitting and removing cutting tools and pull studs in a single clamping. Contact face single-sided 15°. 35 35 8680_40

forarbor size30405063100
32B 35 8680 Fitting aidSK, HSKeShopeShopeShopeShopeShop
Lengthmm6080120––
Widthmm6080100––
Heightmm46601006684
suitable for arborSK 30SK 40SK 50HSK 63HSK 100
Diametermm–––126167
