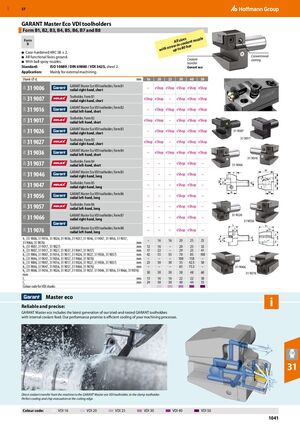

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 1041
Навигация
Каталог Hoffmann Group ручной и измерительный инструмент
Каталог Hoffmann Group режущий и вспомогательный инструмент
Производственная мебель и системы хранения Hoffmann Group 2026
Каталог Hoffmann Group токарный инструмент
Каталог Hoffmann Group запасные части, оснастка и СИЗ
GARANT Master Eco VDI toolholders
Form B1, B2, B3, B4, B5, B6, B7 and B8
Form es zzle
All sizoolant no B rew-in c with sc up to 80 bar
- Case-hardened HRC 58 ± 2. All functional faces ground. Conventional
- Coolant
With ball spray nozzles. cooling
- transfer
Standard: ISO 10889 / DIN 69880 / VDI 3425, sheet 2. Garant eco
Application: Mainly for external machining.
Shank ⌀ d mm 16 20 25 30 40 50
1 31 9006 GARANT Master Eco VDI toolholder, Form B1
radial right-hand, short – eShop eShop eShop eShop eShop
31 9007 Toolholder, Form B1
radial right-hand, short eShop eShop – eShop eShop eShop
31 9016 GARANT Master Eco VDI toolholder, Form B2
radial left-hand, short – eShop eShop eShop eShop eShop
31 9017 Toolholder, Form B2
radial left-hand, short eShop eShop – eShop eShop eShop
31 9026 GARANT Master Eco VDI toolholder, Form B3
radial right-hand, short – eShop eShop eShop eShop eShop 31 9007
31 9027 Toolholder, Form B3 31 9017
radial right-hand, short eShop eShop – eShop eShop eShop
31 9036 GARANT Master Eco VDI toolholder, Form B4
radial left-hand, short – eShop eShop eShop eShop eShop
31 9016 31 9037 Toolholder, Form B4
radial left-hand, short – – – eShop eShop – 31 9006
31 9046 GARANT Master Eco VDI toolholder, Form B5
radial right-hand, long – – – eShop eShop –
31 9047 Toolholder, Form B5
radial right-hand, long – – – eShop eShop –
31 9056 GARANT Master Eco VDI toolholder, Form B6
radial left-hand, long – – – eShop eShop –
31 9057 Toolholder, Form B6
radial left-hand, long – – – eShop eShop –
31 9066 GARANT Master Eco VDI toolholder, Form B7 31 9026
radial right-hand, long – – – eShop eShop –
31 9056
31 9076 GARANT Master Eco VDI toolholder, Form B8 l2 b 1
– – – eShop eShop – l1 b 2
radial left-hand, long h (31 9006, 31 9016, 31 9026, 31 9036, 31 9037, 31 9046, 31 9047, 31 9056, 31 9057,
1 – 16 16 20 25 25
31 9066, 31 9076) mm
| h (31 9007, 31 9017, 31 9027) | mm | 12 | 16 | – | 20 | 25 | 32 |
| h1 (31 9007, 31 9017, 31 9027, 31 9037, 31 9047, 31 9057) | mm | 17 | 22 | – | 29 | 25 | 41 |
| b2 (31 9006, 31 9007, 31 9016, 31 9017, 31 9026, 31 9027, 31 9036, 31 9037) | mm | 42 | 55 | 55 | 70 | 85 | 100 |
| b1 (31 9046, 31 9047, 31 9056, 31 9057, 31 9066, 31 9076) | mm | – | – | – | 100 | 118 | – |
| b1 (31 9006, 31 9007, 31 9016, 31 9017, 31 9026, 31 9027, 31 9036, 31 9037) | mm | 23 | 30 | 30 | 35 | 42.5 | 50 |
| b2 (31 9046, 31 9047, 31 9056, 31 9057, 31 9066, 31 9076) | mm | – | – | – | 65 | 75.5 | – |
31 9066 h2 (31 9006, 31 9016, 31 9026, 31 9027, 31 9036, 31 9037, 31 9046, 31 9056, 31 9066, 31 9076)
6 30 30 30 38 48 60 31 9076
mm
| l | mm | 13 | 16 | 16 | 22 | 22 | 30 |
| l1 | mm | 24 | 30 | 30 | 40 | 44 | 55 |
Colour code for VDI shanks2
Master eco
Reliable and precise: GARANT Master eco includes the latest generation of our tried-and-tested GARANT toolholders with internal coolant feed. Our performance promise is efficient cooling of your machining processes.
31
Direct coolant transfer from the machine to the GARANT Master eco VDI toolholder, to the clamp toolholder. Perfect cooling and chip evacuation at the cutting edge.
