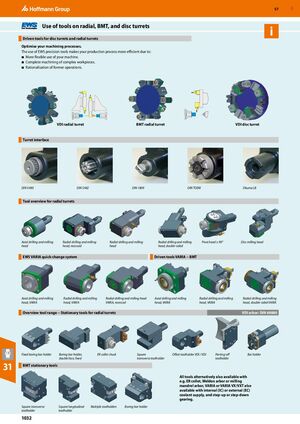

Use of tools on radial, BMT, and disc turrets
Driven tools for disc turrets and radial turrets
Optimise your machining processes.
The use of EWS precision tools makes your production process more efficient due to:
■ More flexible use of your machine.
■ Complete machining of complex workpieces.
■ Rationalisation of former operations.


VDI radial turret BMT radial turret VDI disc turret

Turret interface


DIN 5480 DIN 5482 DIN 1809 DIN TOEM Okuma LB

Tool overview for radial turrets


Axial drilling and milling Radial drilling and milling Radial drilling and milling Radial drilling and milling Pivot head ± 90° Disc milling head
head head, recessed head head, double-sided

EWS VARIA quick-change system Driven tools VARIA − BMT


Axial drilling and milling Radial drilling and milling Radial drilling and milling head Axial drilling and milling Radial drilling and milling Radial drilling and milling
head, VARIA head, VARIA VARIA, recessed head, VARIA head, VARIA head, double-sided VARIA
Overview tool range − Stationary tools for radial turrets VDI arbor: DIN 69880


Fixed boring bar holder Boring bar holder, ER collet chuck Square Offset toolholder VDI / VDI Parting-off Bar holder
double face, fixed transverse toolholder toolholder

31 BMT stationary tools
All tools alternatively also available with
e.g. ER collet, Weldon arbor or milling
mandrel arbor, VARIA or VARIA VX/VXT also
available with internal (IC) or external (EC)
coolant supply, and step-up or step-down
gearing.
Square transverse Square longitudinal Multiple toolholders Boring bar holder
toolholder toolholder
