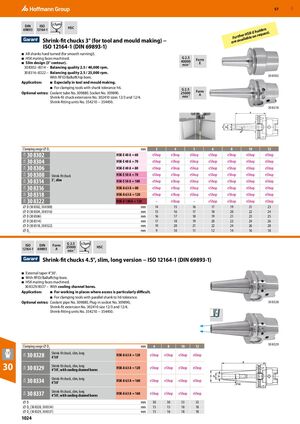

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 1024

Предыдущая страница Следующая страница

Навигация

DIN ISO HSC

Shrink-fit chucks 3° (for tool and mould making) −

ISO 12164-1 (DIN 69893-1)

  • All shanks hard turned (for smooth running!).
  • HSK mating faces machined. G 2.5 Form Slim design (3° contour). 40000
  • min E

-1 30 8302–8314 – Balancing quality 2.5 / 40,000 rpm. 30 8316–8322 – Balancing quality 2.5 / 25,000 rpm. With RFID/Balluffchip bore.

Application: Especially in tool and mould making.

  • For clamping tools with shank tolerance h6.

G 2.5

Optional extras: Coolant tube No. 309880. Socket No. 309890. 25000 Form

min A Shrink-fit chuck extensions No. 302410 sizes 12/3 and 12/4. -1 Shrink-fitting units No. 354210 − 354450.

-E holders . Further HSKailable on request are av

30 8302

30 8318

Clamping range D mm 3 4 5 6 8 10 12

30 8302 1

HSK-E 40 A = 60eShopeShopeShopeShopeShopeShopeShop
30 8304HSK-E 40 A = 70eShopeShopeShopeShopeShopeShopeShop
30 8306HSK-E 40 A = 80eShopeShopeShopeShopeShopeShopeShop
30 8308HSK-E 50 A = 70eShopeShopeShopeShopeShopeShopeShop

Shrink-fit chuck

30 83143°, slimHSK-E 50 A = 100eShopeShopeShopeShopeShopeShopeShop
30 8316HSK-A 63 A = 80eShopeShopeShopeShopeShopeShopeShop
30 8318HSK-A 63 A = 120eShopeShopeShopeShopeShopeShopeShop
30 8322HSK-A 100 A = 120–eShop–eShopeShopeShopeShop
  • D (30 8302, 30 8308) mm 14 15 16 17 19 21 23
  • D (30 8304, 30 8316) mm 15 16 17 18 20 22 24
  • D (30 8306) mm 16 17 18 19 21 23 25
  • D (30 8314) mm 17 18 19 20 22 24 26
  • D (30 8318, 30 8322) mm 19 20 21 22 24 26 28
  • D mm 9 10 11 12 14 16 18 2

G 2.5 ≤3µm

ISODINForm25000HSC
12164-169893A min

-1

Shrink-fit chucks 4.5°, slim, long version − ISO 12164-1 (DIN 69893-1)

  • External taper 4°30′.
  • With RFID/Balluffchip bore.
  • HSK mating faces machined.

30 8329/8337 – With cooling channel bores.

Application: For working in places where access is particularly difficult.

  • For clamping tools with parallel shank to h6 tolerance.

Optional extras: Coolant pipe No. 309880, Plug-in socket No. 309890, 30 8328 Shrink-fit extension No. 302410 size 12/3 and 12/4. Shrink-fitting units No. 354210 − 354450.

Clamping range D mm 6 8 10 12 30 8329

1

30 8328 Shrink-fit chuck, slim, long HSK-A 63 A = 120

4°30′ eShop eShop eShop eShop

30

30 8329 Shrink-fit chuck, slim, long HSK-A 63 A = 120

4°30′, with cooling channel bores eShop eShop eShop eShop

30 8334 Shrink-fit chuck, slim, long HSK-A 63 A = 160

4°30′ eShop eShop eShop eShop

30 8337 Shrink-fit chuck, slim, long HSK-A 63 A = 160

4°30′, with cooling channel bores eShop eShop eShop eShop

  • D (30 8328, 30 8334) mm 15 15 18 18
  • D (30 8329, 30 8337) mm 15 16 18 18
