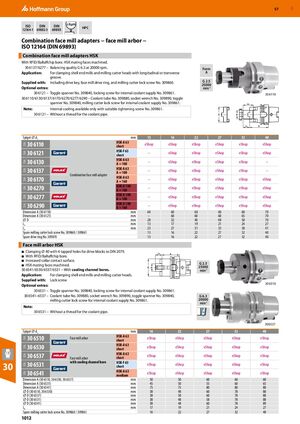

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 1012

ISO DIN HPC

Combination face mill adapters − face mill arbor −

ISO 12164 (DIN 69893)

Combination face mill adapters HSK

With RFID/Balluffchip bore. HSK mating faces machined. 30 6137/6277 – Balancing quality G 6.3 at 20000 rpm. Form

Application: For clamping shell end mills and milling cutter heads with longitudinal or transverse A

groove.

Supplied with: Including drive key, face mill drive ring, and milling cutter lock screw No. 309860. G 2.5

25000

Optional extras: min-1 30 6121 – Toggle spanner No. 309840, locking screw for internal coolant supply No. 309861. 30 6110 30 6110/6130/6137/6170/6270/6277/6290 – Coolant tube No. 309880, socket wrench No. 309890, toggle spanner No. 309840, milling cutter lock screw for internal coolant supply No. 309861.

Note: Internal cooling available only with suitable tightening screw No. 309861. 30 6121 – Without a thread for the coolant pipe.

Spigot d mm 13 16 22 27 32 40

1 30 6110 HSK-A 63

short eShop eShop eShop eShop eShop eShop

30 6121 HSK-F 63

short – eShop eShop eShop eShop eShop

30 6130 HSK-A 63

A = 100 – eShop eShop eShop eShop –

30 6137 HSK-A 63

A = 100 – eShop eShop eShop eShop –

Combination face mill adapter 30 6170 HSK-A 63

A = 160 – eShop eShop eShop eShop eShop

30 6270 HSK-A 100

A = 100 – eShop eShop eShop eShop eShop

30 6277 HSK-A 100

A = 100 – eShop eShop eShop eShop eShop

30 6290 HSK-A 100

• D mm 28 32 40 48 58 70

L mm 13 17 19 21 24 27

3

L mm 23 27 31 33 38 41

4

Face mill arbor HSK

• Clamping 40 with 4 tapped holes for drive blocks to DIN 2079.
• With RFID/Balluffchip bore.
• Increased collar contact surface. HSK mating faces machined. G 2.5
• 25000

30 6541/6530/6537/6531 – With cooling channel bores. min-1

Application: For clamping shell end mills and milling cutter heads.

Supplied with: Lock screw

Optional extras: 30 6510 30 6531 – Toggle spanner No. 309840, locking screw for internal coolant supply No. 309861. 30 6541–6537 – Coolant tube No. 309880, socket wrench No. 309890, toggle spanner No. 309840, G 6.3 milling cutter lock screw for internal coolant supply No. 309861. 20000 min-1

Note: 30 6531 – Without a thread for the coolant pipe.

30 6537

Spigot d mm 16 22 27 32 40

30 65101 HSK-A 63

Face mill arbor short eShop eShop eShop eShop eShop

30 6530 HSK-A 63

short eShop eShop eShop eShop eShop

30 6537 HSK-A 63

short eShop eShop eShop eShop eShop

Face mill arbor

30 30 6531 with cooling channel bore HSK-F 63

short eShop eShop eShop eShop eShop

30 6541 HSK-A 63

• D (30 6510, 30 6530) mm 38 48 60 78 88
• D (30 6537) mm 38 50 60 78 88
• D (30 6531) mm 38 48 58 78 88
• D (30 6541) mm 38 48 60 78 89

Spare milling cutter lock screw No. 309860 / 309861 16 22 27 32 40
