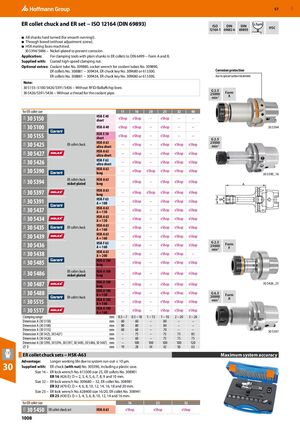

GBP 57 ​ER collet chuck and ER set − ISO 12164 (DIN 69893) ISO DIN DIN ≤3µm 12164-1 69882-6 69893 HSC ■ All shanks hard turned (for smooth running!). ■ Through bored (without adjustment screw). ■ HSK mating faces machined. 30 5394/5486 – Nickel-plated to prevent corrosion. Application: For clamping tools with plain shanks in ER collets to DIN 6499 − Form A and B. Supplied with: Coated high-speed clamping nut. Optional extras: Coolant tube No. 309880, socket wrench for coolant tubes No. 309890, ER collets No. 308881 − 309434, ER chuck key No. 309680 or 613300. Corrosion protection ER collets No. 308881 − 309434, ER chuck key No. 309680 or 613300. due to special surface treatment. Note: 30 5155–5100/5426/5391/5436 – Without RFID/Balluffchip bore. G 2.5 Form 30 5426/5391/5436 – Without a thread for the coolant pipe. 25000 min-1 A for ER collet size 11 16 20 25 32 40 HSK-E 40 30 5150 eShop eShop – eShop – – 31A short 30 5100 HSK-A 40 eShop eShop – eShop – – 31A 30 5394 HSK-E 50 30 5155 eShop eShop – eShop – – 31A short G 2.5 HSK-A 63 25000 30 5425 ER collet chuck – eShop – eShop eShop eShop 31A ultra short min-1 HSK-A 63 30 5427 – eShop – eShop eShop eShop 32A ultra short HSK-F 63 30 5426 – eShop – eShop eShop eShop 31A ultra short HSK-A 63 30 5390 – eShop eShop eShop eShop eShop 31A long 30 5390_16 ER collet chuck HSK-A 63 30 5394 – eShop – eShop eShop eShop 31A nickel-plated long HSK-A 63 30 5397 – eShop eShop eShop eShop eShop 32A long HSK-F 63 30 5391 – eShop – eShop eShop eShop 31A A = 100 HSK-A 63 30 5437 – eShop – eShop eShop eShop 31A A = 130 HSK-A 63 30 5434 – eShop – eShop eShop eShop 32A A = 130 HSK-A 63 30 5435 ER collet chuck – eShop – eShop eShop eShop 31A A = 160 HSK-A 63 30 5439 – eShop – eShop eShop eShop 32A A = 160 HSK-F 63 G 2.5 30 5436 – eShop – eShop eShop eShop Form 31A A = 160 25000 F min-1 HSK-A 63 30 5438 – eShop – eShop eShop – 31A A = 200 HSK-A 100 30 5485 – eShop – eShop eShop eShop 31A long ER collet chuck HSK-A 100 30 5486 – eShop – eShop eShop eShop 31A nickel-plated long HSK-A 100 30 5487 – eShop – eShop eShop eShop 30 5426_25 32A long HSK-A 100 30 5488 – eShop – eShop eShop eShop 31A A = 130 G 6.3 Form ER collet chuck 20000 A HSK-A 100 min-1 30 5515 – eShop – eShop eShop eShop 31A A = 160 HSK-A 100 30 5517 – eShop – eShop eShop eShop 32A A = 160 Clamping range mm 0.5 – 7 0.5 – 10 1 – 13 1 – 16 2 – 20 3 – 26 Dimension A (30 5150) mm 60 60 – 80 – – Dimension A (30 5100) mm 80 80 – 80 – – Dimension A (30 5155) mm 60 60 – 70 – – 30 5397 Dimension A (30 5425, 30 5427) mm – 75 – 75 75 85 Dimension A (30 5426) mm – 60 – 75 75 75 Dimension A (30 5390, 30 5394, 30 5397, 30 5485, 30 5486, 30 5487) mm – 100 100 100 100 120 ⌀ D mm 19 28 34 42 50 63 ER collet chuck sets − HSK-A63 Maximum system accuracy Advantage: Longer working life due to system run-out ≤ 10 µm. 30 Supplied with: ER chuck (with nut) No. 305390, including a plastic case. Size 16 – ER lock wrench No. 613300 size 25, ER collets No. 308901 ER 16 (426 E): D = 2, 3, 4, 5, 6, 7, 8, 9 and 10 mm. Size 32 – ER lock wrench No. 309680 − 32, ER collet No. 308981 ER 32 (470 E): D = 4, 6, 8, 10, 12, 14, 16, 18 and 20 mm. Size 25 – ER lock wrench No. 628400 size 16/20, ER collet No. 308941 ER 25 (430 E): D = 3, 4, 5, 6, 8, 10, 12, 14 and 16 mm. for ER collet size 16 25 32 30 5450 HSK-A 63 37D ER collet chuck set eShop eShop eShop 1008
