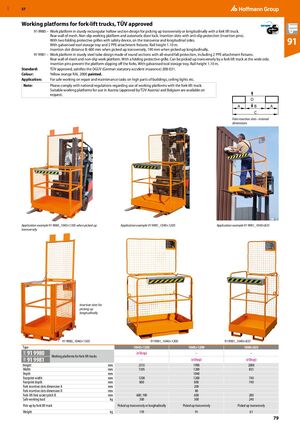

GBP 57 ​Working platforms for fork-lift trucks, TÜV approved 91 9980 – Work platform in sturdy rectangular hollow section design for picking up transversely or longitudinally with a fork lift truck. Rear wall of mesh. Non-slip working platform and automatic door lock. Insertion slots with anti-slip protection (insertion pins). With two folding protective grilles with safety device, on the transverse and longitudinal sides. With galvanised tool storage tray and 2 PPE attachment fixtures. Rail height 1.10 m. 91 Insertion slot distance B: 600 mm when picked up transversely, 190 mm when picked up longitudinally. 91 9981 – Work platform in sturdy steel tube design made of round sections with all-round fall protection, including 2 PPE attachment fixtures. Rear wall of mesh and non-slip work platform. With a folding protective grille. Can be picked up transversely by a fork lift truck at the wide side. Insertion pins prevent the platform slipping off the forks. With galvanised tool storage tray. Rail height 1.10 m. Standard: TÜV approved, satisfies the DGUV (German statutory accident insurance) 208-031. Colour: Yellow orange RAL 2000 painted. Application: For safe working on repair and maintenance tasks on high parts of buildings, ceiling lights etc. Note: Please comply with national regulations regarding use of working platforms with the fork-lift truck. Suitable working platforms for use in Austria (approved by TÜV Austria) and Belgium are available on request. D A B A C Fork insertion slots - internal dimensions Application example 91 9980_1040×1305 when picked up Application example 91 9981_1040×1200 Application example 91 9981_1040×835 transversely Insertion slots for picking up longitudinally 91 9980_1040×1305 91 9981_1040×1200 91 9981_1040×835 Type 1040×1305 1040×1200 1040×835 91 9980 (eShop) – – 94B 94B Working platforms for fork-lift trucks 91 9981 – (eShop) (eShop) Height mm 2355 1990 2000 Width mm 1305 1200 835 Depth mm 1040 Footprint width mm 1200 1200 740 Footprint depth mm 800 800 740 Fork insertion slots dimension A mm 200 Fork insertion slots dimension D mm 80 Fork-lift fork socket pitch B mm 600; 190 600 280 Safe working load kg 300 300 240 Pick-up by fork lift truck Picked up transversely or longitudinally Picked up transversely Picked up transversely Weight kg 139 91 61 79
