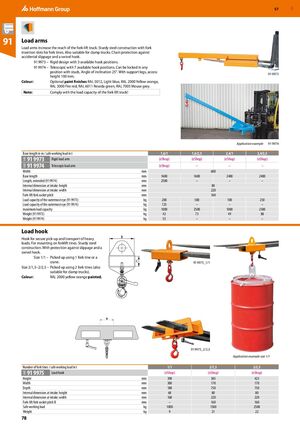

GBP 57 91 ​Load arms Load arms increase the reach of the fork-lift truck. Sturdy steel construction with fork insertion slots for fork tines. Also suitable for clamp trucks. Chain protection against accidental slippage and a swivel hook. 91 9973 – Rigid design with 3 available hook positions. 91 9974 – Telescopic with 7 available hook positions. Can be locked in any position with studs. Angle of inclination 25°. With support legs, access 91 9973 height 100 mm. Colour: Optional paint finishes RAL 5012, Light blue, RAL 2000 Yellow orange, RAL 3000 Fire red, RAL 6011 Reseda green, RAL 7005 Mouse grey. Note: Comply with the load capacity of the fork lift truck! Application example 91 9974 Base length in m / safe working load in t 1,6/1 1,6/2,5 2,4/1 2,4/2,5 91 9973 Rigid load arm (eShop) (eShop) (eShop) (eShop) 94B 94B 91 9974 Telescopic load arm (eShop) – – – Width mm 600 Base length mm 1600 1600 2400 2400 Length, extended (91 9974) mm 2500 – – – Internal dimension at intake: height mm 80 Internal dimension at intake: width mm 220 Fork-lift fork socket pitch mm 160 Load capacity of the outermost eye (91 9973) kg 200 500 100 250 Load capacity of the outermost eye (91 9974) kg 125 – – – maximum load capacity kg 1000 2500 1000 2500 Weight (91 9973) kg 42 73 49 88 Weight (91 9974) kg 55 – – – ​Load hook Hook for secure pick-up and transport of heavy B loads. For mounting on forklift tines. Sturdy steel construction. With protection against slippage and a swivel hook. Size 1/1 – Picked up using 1 fork tine or a crane. C 91 9975_1/1 Size 2/1,5–2/2,5 – Picked up using 2 fork tines (also suitable for clamp trucks). Colour: RAL 2000 yellow orange painted. B 91 9975_2/2,5 Application example size 1/1 Number of fork tines / safe working load in t 1/1 2/1,5 2/2,5 91 9975 Load hook (eShop) (eShop) (eShop) 94B Height mm 390 385 425 Width mm 300 170 170 Depth mm 180 750 750 Internal dimension at intake: height mm 68 80 80 Internal dimension at intake: width mm 168 220 220 Fork-lift fork socket pitch B mm – 160 160 Safe working load kg 1000 1500 2500 Weight kg 9 21 22 78
