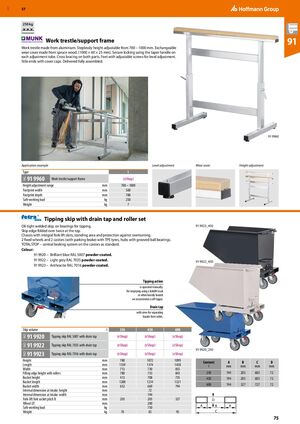

GBP 57 250 kg Work trestle/support frame Work trestle made from aluminium. Steplessly height adjustable from 700 – 1000 mm. Exchangeable 91 wear cover made from spruce wood. (1000 × 60 × 25 mm). Secure locking using the taper handle on each adjustment tube. Cross bracing on both parts. Feet with adjustable screws for level adjustment. Stile ends with cover caps. Delivered fully assembled. ​ 91 9960 Application example Level adjustment Wear cover Height adjustment Type 1 91 9960 98G Work trestle/support frame (eShop) Height adjustment range mm 700 – 1000 Footprint width mm 500 Footprint depth mm 780 Safe working load kg 250 Weight kg 7 ​ Tipping skip with drain tap and roller set Oil-tight welded skip, on bearings for tipping. 91 9923_450 Skip edge folded over twice at the top. Chassis with integral fork lift slots, standing area and protection against overturning. 2 fixed wheels and 2 castors (with parking brake) with TPE tyres, hubs with grooved ball bearings. TOTALSTOP – central braking system on the castors as standard. Colour: 91 9920 – Brilliant blue RAL 5007 powder-coated. 91 9922 – Light grey RAL 7035 powder-coated. 91 9922_450 91 9923 – Anthracite RAL 7016 powder-coated. Tipping action is operated manually. For emptying using a forklift truck or when heavily loaded we recommend a self-tipper. Drain tap with sieve for separating liquids from solids. Skip volume l 250 450 600 91 9920 96D Tipping skip RAL 5007 with drain tap (eShop) (eShop) (eShop) 91 9922 96D Tipping skip RAL 7035 with drain tap (eShop) (eShop) (eShop) 91 9920_250 91 9923 96D Tipping skip RAL 7016 with drain tap (eShop) (eShop) (eShop) Height mm 780 1072 1099 Content A B C D Length mm 1359 1374 1458 l mm mm mm mm Width mm 713 730 855 Filling edge height with rollers mm 780 733 843 250 194 203 603 72 Bucket height mm 413 708 735 450 194 203 603 72 Bucket length mm 1200 1214 1321 Bucket width mm 652 669 794 600 194 327 727 72 Internal dimension at intake: height mm 72 Internal dimension at intake: width mm 194 Fork-lift fork socket pitch B mm 203 203 327 D Wheel ⌀ mm 200 A B A Safe working load kg 750 Weight kg 70 83 95 C 75
