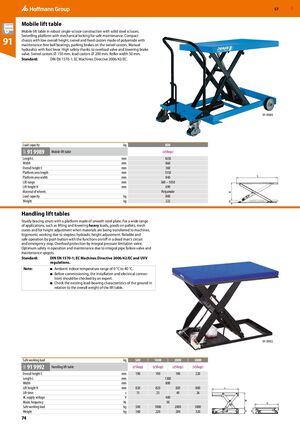

GBP 57 ​Mobile lift table Mobile lift table in robust single-scissor construction with solid steel scissors. Swivelling platform with mechanical locking for safe maintenance. Compact 91 chassis with low overall height, swivel and fixed castors made of polyamide with maintenance-free ball bearings, parking brakes on the swivel castors. Manual hydraulics with foot lever. High safety thanks to overload valve and lowering brake valve. Swivel castors ⌀ 150 mm, load castors ⌀ 200 mm. Roller width 50 mm. Standard: DIN EN 1570-1; EC Machines Directive 2006/42/EC. ​ 91 9989 Load capacity kg 800 91 9989 Mobile lift table (eShop) 08Y Length L mm 1650 Width mm 860 Overall height C mm 360 Platform area length mm 1350 Platform area width mm 840 Lift range mm 360 – 1050 Lift height H mm 690 Material of wheels Polyamide Load capacity kg 800 Weight kg 222 ​Handling lift tables Sturdy bracing struts with a platform made of smooth steel plate. For a wide range of applications, such as lifting and lowering heavy loads, goods on pallets, mesh crates and for height adjustment when materials are being transferred to machines. Ergonomic working due to stepless hydraulic height adjustment. Reliable and safe operation by push button with the functions on/off in a dead man‘s circuit and emergency stop. Overload protection by integral pressure limitation valve. Optimum safety in operation and maintenance due to integral pipe failure valve and maintenance spigots. Standard: DIN EN 1570-1; EC Machines Directive 2006/42/EC and UVV regulations. Note: ■ Ambient indoor temperature range of 0 °C to 40 °C. ■ Before commissioning, the installation and electrical connec- tions should be checked by an expert. ■ Check the existing load-bearing characteristics of the ground in relation to the overall weight of the lift table. 91 9992 Safe working load kg 500 1000 2000 3000 91 9992 Handling lift table (eShop) (eShop) (eShop) (eShop) 08Y Overall height C mm 190 190 190 220 Length L mm 1300 Width mm 800 Lift height H mm 820 820 820 800 Lift time s 15 25 40 26 AC supply voltage V 400 Mains frequency Hz 50 Safe working load kg 500 1000 2000 3000 Weight kg 160 220 280 320 74
