Производственная мебель и системы хранения Hoffmann Group 2026 - страница 669

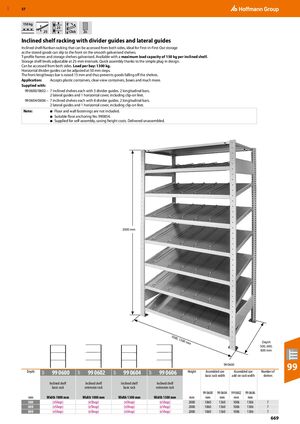

GBP 57 150 kg 25 25 Click Zn ​Inclined shelf racking with divider guides and lateral guides Inclined shelf/Kanban racking that can be accessed from both sides, ideal for First-in-First-Out storage as the stored goods can slip to the front on the smooth galvanised shelves. T-profile frames and storage shelves galvanised. Available with a maximum load capacity of 150 kg per inclined shelf. Storage shelf levels adjustable at 25-mm intervals. Quick assembly thanks to the simple plug-in design. Can be accessed from both sides. Load per bay: 1300 kg. Horizontal divider guides can be adjusted at 50 mm steps. The front lengthways bar is raised 15 mm and thus prevents goods falling off the shelves. Application: Accepts plastic containers, clear-view containers, boxes and much more. Supplied with: 99 0600/0602 – 7 inclined shelves each with 5 divider guides. 2 longitudinal bars. 2 lateral guides and 1 horizontal cover, including clip-on feet. 99 0604/0606 – 7 inclined shelves each with 8 divider guides. 2 longitudinal bars. 2 lateral guides and 1 horizontal cover, including clip-on feet. Note: ■ Floor and wall fastenings are not included. ■ Suitable floor anchoring No. 990854. ■ Supplied for self-assembly, saving freight costs. Delivered unassembled. 2000 mm 100 0, 13 00 m m Depth 500, 600, 800 mm Depth 99 0600 99 0602 99 0604 99 0606 Height Assembled size 99 0600 Assembled size Number of 99 96P 96P 96P 96P basic rack width add-on rack width shelves Inclined shelf Inclined shelf Inclined shelf Inclined shelf basic rack extension rack basic rack extension rack ​ 99 0600 99 0604 99 0602 99 0606 ​ mm Width 1000 mm Width 1000 mm Width 1300 mm Width 1300 mm mm mm mm mm mm ​ 500 (eShop) (eShop) (eShop) (eShop) 2000 1060 1360 1006 1306 7 600 (eShop) (eShop) (eShop) (eShop) 2000 1060 1360 1006 1306 7 800 (eShop) (eShop) (eShop) (eShop) 2000 1060 1360 1006 1306 7 669
