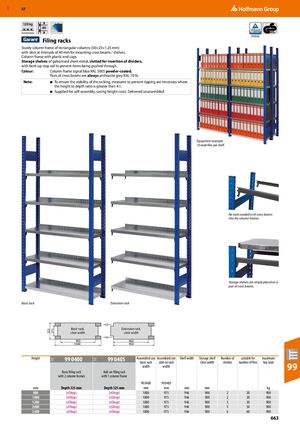

GBP 57 120 kg 40 Filing racks Sturdy column frame of rectangular columns (50×25×1.25 mm) with slots at intervals of 40 mm for mounting cross beams / shelves. Column frame with plastic end caps. Storage shelves of galvanised sheet metal, slotted for insertion of dividers, with bent-up stop rail to prevent items being pushed through. Colour: Column frame signal blue RAL 5005 powder-coated. Pairs of cross beams are always anthracite grey RAL 7016. Note: ■ To ensure the stability of the racking, measures to prevent tipping are necessary where the height to depth ratio is greater than 4:1. ■ Supplied for self-assembly, saving freight costs. Delivered unassembled. Equipment example: 10 wide files per shelf. No tools needed to fit cross beams into the column frames. Storage shelves are simply placed on a pair of cross beams. Basic rack Extension rack Basic rack, Extension rack, 325 275 clear width clear width 900 900 1000 950 Height 99 0400 99 0405 Assembled size Assembled size Shelf width Storage shelf Number of suitable for maximum 91I 91I basic rack add-on rack clear width shelves number of files bay load Basic filing rack Add-on filing rack width width 99 with 2 column frames with 1 column frame 99 0400 99 0405 ​ ​ ​ ​ ​ mm Depth 325 mm Depth 325 mm mm mm mm mm ​ ​ kg 800 (eShop) (eShop) 1000 975 946 900 2 20 900 1000 (eShop) (eShop) 1000 975 946 900 2 20 900 1200 (eShop) (eShop) 1000 975 946 900 3 30 900 2000 (eShop) (eShop) 1000 975 946 900 5 50 900 2400 (eShop) (eShop) 1000 975 946 900 6 60 900 663
