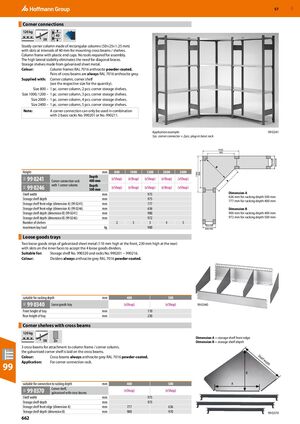

GBP 57 Corner connections ​ 120 kg 40 38 Sturdy corner column made of rectangular columns (50×25×1.25 mm) with slots at intervals of 40 mm for mounting cross beams / shelves. Column frame with plastic end caps. No tools required for assembly. The high lateral stability eliminates the need for diagonal braces. Storage shelves made from galvanised sheet metal. Colour: Column frames RAL 7016 anthracite powder-coated. Pairs of cross beams are always RAL 7016 anthracite grey. Supplied with: Corner column, corner shelf (see the respective size for the quantity). Size 800 – 1 pc. corner column, 2 pcs. corner storage shelves. Size 1000; 1200 – 1 pc. corner column, 3 pcs. corner storage shelves. Size 2000 – 1 pc. corner column, 4 pcs. corner storage shelves. Size 2400 – 1 pc. corner column, 5 pcs. corner storage shelves. Note: A corner connection can only be used in combination with 2 basic racks No. 990201 or No. 990211. Application example: 99 0241 1pc. corner connector + 2pcs. plug-in basic rack 1000 900 400/500 350/450 B Height mm 800 1000 1200 2000 2400 1000 900 Depth 99 0241 (eShop) (eShop) (eShop) (eShop) (eShop) 91I Corner connection rack 400 mm A with 1 corner column Depth 99 0246 (eShop) (eShop) (eShop) (eShop) (eShop) 91I 500 mm Shelf width mm 975 Dimension A 636 mm for racking depth 500 mm Storage shelf depth mm 975 777 mm for racking depth 400 mm Storage shelf front edge (dimension A) (99 0241) mm 777 Storage shelf front edge (dimension A) (99 0246) mm 636 Dimension B Storage shelf depth (dimension B) (99 0241) mm 900 900 mm for racking depth 400 mm Storage shelf depth (dimension B) (99 0246) mm 972 972 mm for racking depth 500 mm Number of shelves 2 3 3 4 5 350/450 maximum bay load kg 900 400/500 Loose goods trays ​ Two loose goods strips of galvanised sheet metal (110 mm high at the front, 230 mm high at the rear) with slots on the inner faces to accept the 4 loose goods dividers. Suitable for: Storage shelf No. 990320 and racks No. 990201 − 990216. Colour: Dividers always anthracite grey RAL 7016 powder-coated. suitable for racking depth mm 400 500 99 0340 Loose goods tray (eShop) (eShop) 91I 99 0340 Front height of tray mm 110 Rear height of tray mm 230 Corner shelves with cross beams ​ 120 kg Dimension A = storage shelf front edge 38 Zn Dimension B = storage shelf depth 3 cross beams for attachment to column frame / corner column, the galvanised corner shelf is laid on the cross beams. Sh Colour: Cross beams always anthracite grey RAL 7016 powder-coated. elf wi Application: For corner connection rack. dt 99 h B suitable for connection to racking depth mm 400 500 A Corner shelf, 99 0370 (eShop) (eShop) 91I galvanised with cross beams Shelf width mm 975 Storage shelf depth mm 975 Storage shelf front edge (dimension A) mm 777 636 Storage shelf depth (dimension B) mm 900 970 99 0370 662
