Производственная мебель и системы хранения Hoffmann Group 2026 - страница 631

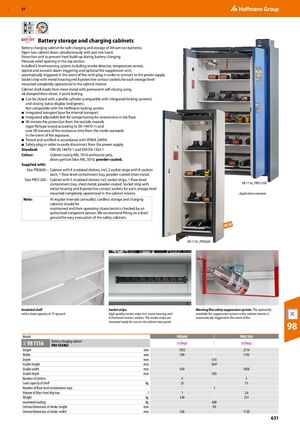

GBP 57 32 90 Battery storage and charging cabinets Battery charging cabinet for safe charging and storage of lithium-ion batteries. Open two cabinet doors simultaneously with just one hand. Extraction unit to prevent heat build-up during battery charging. Pressure relief opening in the top section. Installed 3-level warning system including smoke detector, temperature sensor, optical and acoustic alarm triggering and optional fire suppression unit; automatically triggered in the event of fire; with plug in order to connect to the power supply. Socket strip with metal housing and 8 protective contact sockets for each storage level mounted completely operational in the cabinet interior. Cabinet shell made from sheet metal with permanent self-closing using oil-damped door closer, 3-point locking. ■ Can be closed with a profile cylinder (compatible with integrated locking systems) and closing status display (red/green). Not compatible with the Hoffmann locking system. ■ Integrated transport base for internal transport. ■ Integrated adjustable feet for compensating for unevenness in the floor. ■ 90-minute fire protection from the outside inwards (type 90/type tested according to EN 14470-1) and over 90 minutes of fire resistance time from the inside outwards in the event of fire exposure. ■ Tested and certified in accordance with VDMA 24994. ■ Safety plug in order to easily disconnect from the power supply. Standard: DIN EN 14470-1 and DIN EN 1363-1 Colour: Cabinet casing RAL 7016 anthracite grey, doors gentian blue RAL 5010, powder-coated. Supplied with: Size PRO600 – Cabinet with 4 insulated shelves, incl. 2 socket strips with 8 sockets each, 1 floor-level containment tray, powder-coated sheet metal. Size PRO1200 – Cabinet with 5 insulated shelves incl. socket strips, 1 floor-level containment tray, sheet metal, powder-coated. Socket strip with 98 1116_PRO1200 metal housing and 8 protective contact sockets for each storage level mounted completely operational in the cabinet interior. Application example Note: At regular intervals (annually), cordless storage and charging cabinets should be maintained and their operating characteristics checked by an authorised competent person. We recommend fitting on a level ground for easy evacuation of the safety cabinets. NEW 98 1116_PRO600 Insulated shelf Socket strips. Warning/fire safety suppression system. The optionally with a load capacity of 75 kg each. High-quality socket strips incl. metal housing and available fire suppression system in the cabinet interior is 8 shuttered contact sockets. The socket strips are automatically triggered in the event of fire. mounted ready for use on the cabinet rear panel. 98 Model PRO600 PRO1200 Battery charging cabinet 98 1116 96G (eShop) (eShop) PRO CHARGE Height mm 1953 2114 Width mm 599 1193 Depth mm 615 Usable height mm 1647 Usable width mm 450 1050 Usable depth mm 503 Number of shelves 4 5 Load capacity of shelf kg 25 75 Number of floor-level containment trays 1 Volume of floor-level drip tray l 1 2.6 Weight kg 330 531 maximum loading kg 600 Internal dimension at intake: height mm 90 Internal dimension at intake: width mm 526 1120 631
