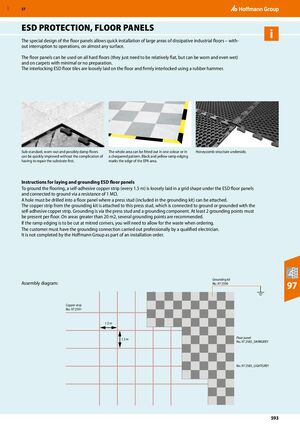

GBP 57 ESD PROTECTION, FLOOR PANELS The special design of the floor panels allows quick installation of large areas of dissipative industrial floors – with- out interruption to operations, on almost any surface. The floor panels can be used on all hard floors (they just need to be relatively flat, but can be worn and even wet) and on carpets with minimal or no preparation. The interlocking ESD floor tiles are loosely laid on the floor and firmly interlocked using a rubber hammer. Sub-standard, worn-out and possibly damp floors The whole area can be fitted out in one colour or in Honeycomb structure underside. can be quickly improved without the complication of a chequered pattern. Black and yellow ramp edging having to repair the substrate first. marks the edge of the EPA area. Instructions for laying and grounding ESD floor panels To ground the flooring, a self-adhesive copper strip (every 1.5 m) is loosely laid in a grid shape under the ESD floor panels and connected to ground via a resistance of 1 MΩ. A hole must be drilled into a floor panel where a press stud (included in the grounding kit) can be attached. The copper strip from the grounding kit is attached to this press stud, which is connected to ground or grounded with the self-adhesive copper strip. Grounding is via the press stud and a grounding component. At least 2 grounding points must be present per floor. On areas greater than 20 m2, several grounding points are recommended. If the ramp edging is to be cut at mitred corners, you will need to allow for the waste when ordering. The customer must have the grounding connection carried out professionally by a qualified electrician. It is not completed by the Hoffmann Group as part of an installation order. Grounding kit Assembly diagram: No. 97 2590 97 Copper strip No. 97 2591 1.5 m 1.5 m Floor panel No. 97 2585_DARKGREY No. 97 2585_LIGHTGREY 593
