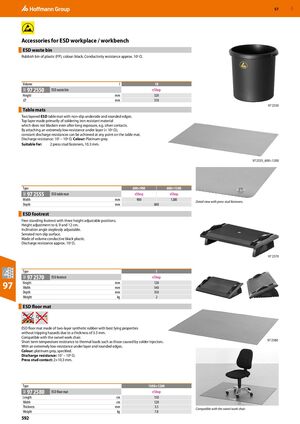

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 592

GBP 57 ​Accessories for ESD workplace / workbench ESD waste bin ​ Rubbish bin of plastic (PP), colour: black. Conductivity resistance approx. 104 Ω. Volume l 18 97 2550 ESD waste bin eShop 98E Height mm 320 ⌀ mm 310 97 2550 Table mats ​ Two layered ESD table mat with non-slip underside and rounded edges. Top layer made primarily of soldering iron resistant material which does not blacken even after long exposure, e.g. silver contacts. By attaching an extremely low-resistance under layer (< 104 Ω), constant discharge resistances can be achieved at any point on the table mat. Discharge resistance: 107 – 108 Ω. Colour: Platinum grey. Suitable for: 2 press stud fasteners, 10.3 mm. 97 2555_600×1200 Type 600×900 600×1200 97 2555 ESD table mat eShop eShop 98E Width mm 900 1200 Detail view with press stud fasteners. Depth mm 600 ESD footrest ​ Free-standing footrest with three height adjustable positions. Height adjustment to 6, 9 and 12 cm. Inclination angle steplessly adjustable. Serrated non-slip surface. Made of volume conductive black plastic. Discharge resistance approx. 103 Ω. 97 2570 Type 1 97 2570 ESD footrest eShop 98E 97 Height Width Depth mm mm mm 120 540 350 Weight kg 2 ESD floor mat ​ ESD floor mat made of two-layer synthetic rubber with best lying properties without tripping hazards due to a thickness of 3.5 mm. Compatible with the swivel work chair. Short term temperature resistance to thermal loads such as those caused by solder injectors. 97 2580 With an extremely low-resistance under layer and rounded edges. Colour: platinum grey, speckled. Discharge resistance: 107 – 108 Ω. Press stud contact: 2×10.3 mm. Type 1500×1200 97 2580 ESD floor mat eShop 98E Length cm 150 Width cm 120 Thickness mm 3.5 Compatible with the swivel work chair. Weight kg 7.8 592
