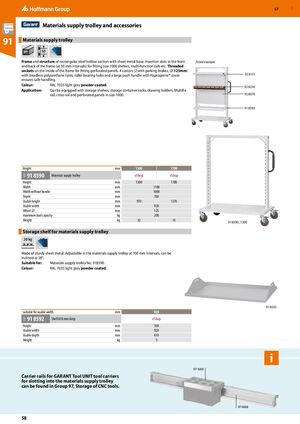

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 58

GBP 57 ​ Materials supply trolley and accessories 91 Materials supply trolley ​ 50 Frame and structure of rectangular steel hollow section with sheet metal base. Insertion slots in the front Fitted example and back of the frame (at 50 mm intervals) for fitting size 1000 shelves, multi-function rails etc. Threaded sockets on the inside of the frame for fitting perforated panels. 4 castors (2 with parking brakes, ⌀ 125mm) with treadless polyurethane tyres, roller bearing hubs and a large push handle with Haptoprene® cover 92 8131 ensures safe handling. Colour: RAL 7035 light grey powder-coated. 92 8230 Application: Can be equipped with storage shelves, storage container racks, drawing holders, Multifix rail, cross rail and perforated panels in size 1000. 92 8070 91 8592 Height mm 1300 1700 91 8590 Materials supply trolley eShop eShop 91P Height mm 1300 1700 Width mm 1100 Width without handle mm 1000 Depth mm 700 Usable height mm 970 1370 Usable width mm 920 Wheel ⌀ mm 125 maximum load capacity kg 200 Weight kg 32 35 91 8590_1300 Storage shelf for materials supply trolley ​ 20 kg Made of sturdy sheet metal. Adjustable in the materials supply trolley at 100 mm intervals, can be inclined at 20°. Suitable for: Materials supply trolley No. 918590. Colour: RAL 7035 light grey powder coated. ​ 91 8592 suitable for usable width mm 920 91 8592 Shelf 610 mm deep eShop 91P Height mm 100 Usable width mm 920 Usable depth mm 610 Weight kg 9 97 1000 Carrier rails for GARANT Tool UNIT tool carriers for slotting into the materials supply trolley can be found in Group 97, Storage of CNC tools. 97 0668 58
