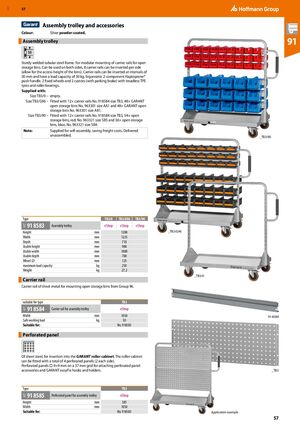

GBP 57 ​ Assembly trolley and accessories Colour: Silver powder-coated. Assembly trolley ​ 91 50 Sturdy welded tubular steel frame. For modular mounting of carrier rails for open storage bins. Can be used on both sides, 8 carrier rails can be inserted per side (allow for the access height of the bins). Carrier rails can be inserted at intervals of 50 mm and have a load capacity of 30 kg. Ergonomic 2-component Haptoprene® push handle. 2 fixed wheels and 2 castors (with parking brake) with treadless TPE tyres and roller bearings. Supplied with: Size TB3/0 – empty. Size TB3/G96 – Fitted with 12× carrier rails No. 918584 size TB3, 48× GARANT open storage bins No. 963301 size AA1 and 48× GARANT open storage bins No. 963301 size AB1. Size TB3/90 – Fitted with 12× carrier rails No. 918584 size TB3, 54× open storage bins, red, No. 963321 size SB5 and 36× open storage bins, blue, No. 963321 size SB4. Note: Supplied for self-assembly, saving freight costs. Delivered unassembled. _TB3/90 Type TB3/0 TB3/G96 TB3/90 91 8583 Assembly trolley eShop eShop eShop 91T Height mm 1200 _TB3/G96 Width mm 1225 Depth mm 710 Usable height mm 900 Usable width mm 1000 Usable depth mm 700 Wheel ⌀ mm 125 maximum load capacity kg 250 Weight kg 27.2 _TB3/0 Carrier rail ​ Carrier rail of sheet metal for mounting open storage bins from Group 96. suitable for type TB3 91 8584 Carrier rail for assembly trolley eShop 91T Width mm 1050 91 8584 Safe working load kg 30 Suitable for: No. 918583 Perforated panel ​ Of sheet steel, for insertion into the GARANT roller cabinet. The roller cabinet can be fitted with a total of 4 perforated panels (2 each side). Perforated panels □ 9×9 mm on a 37 mm grid for attaching perforated panel accessories and GARANT easyFix hooks and holders. _TB3 Type TB3 91 8585 Perforated panel for assembly trolley eShop 91T Height mm 385 Width mm 1050 Suitable for: No. 918583 Application example 57
