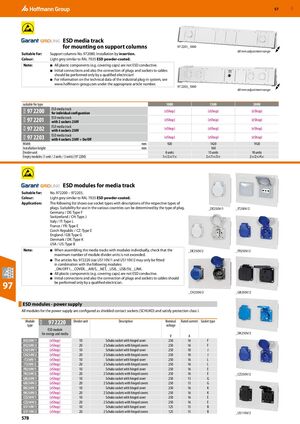

GBP 57 ESD media track for mounting on support columns 97 2201_1000 60 mm adjustment range Suitable for: Support columns No. 972080. Installation by insertion. Colour: Light grey similar to RAL 7035 ESD powder-coated. Note: ■ All plastic components (e.g. covering caps) are not ESD conductive. ■ Initial connections and also the connection of plugs and sockets to cables should be performed only by a qualified electrician! ■ For information on the technical data of the industrial plug-in system, see www.hoffmann-group.com under the appropriate article number. 97 2203_1000 60 mm adjustment range suitable for type 1000 1500 2000 ESD media track 97 2200 9GW 9GW 9GW 9GW (eShop) (eShop) (eShop) for individual configuration ESD media track 97 2201 with 2 sockets 250V (eShop) (eShop) (eShop) ESD media track 97 2202 with 4 sockets 250V (eShop) (eShop) (eShop) ESD media track 97 2203 with 4 sockets 250V + On/Off (eShop) (eShop) (eShop) Width mm 920 1420 1920 Installation height mm 160 Divider unit 8 units 13 units 18 units Empty modules (1 unit / 2 units / 3 units) (97 2200) 1×/2×/1× 2×/1×/3× 2×/2×/4× ESD modules for media track Suitable for: No. 972200 – 972203. Colour: Light grey similar to RAL 7035 ESD powder-coated. Application: The following list shows our socket types with descriptions of the respective types of plugs. Suitability for use in the various countries can be determined by the type of plug. _DE250V/1 _IT250V/2 Germany / DE: Type F Switzerland / CH: Type J Italy / IT: Type L France / FR: Type E Czech Republic / CZ: Type E England / GB: Type G Denmark / DK: Type K USA / US: Type B Note: ■ When assembling the media tracks with modules individually, check that the _DE250V/2 _FR250V/2 maximum number of module divider units is not exceeded. ■ The articles No. 972220 size US110V/1 and US110V/2 may only be fitted in combination with the following modules: _ON/OFF1, _COVER, _AIR/S, _NET, _USB, _USB/5V, _LINK. ■ All plastic components (e.g. covering caps) are not ESD conductive. ■ Initial connections and also the connection of plugs and sockets to cables should 97 be performed only by a qualified electrician. _CH250V/2 _GB250V/2 ESD modules - power supply ​ All modules for the power supply are configured as shielded contact sockets (SCHUKO) and satisfy protection class I. Module 97 2220 Divider unit Description Nominal Rated current Socket type 9GW type voltage ESD module for energy and media _DK250V/2 ​ ​ V A ​ DE250V/1 (eShop) 1U Schuko socket with hinged cover 250 16 F DE250V/2 (eShop) 2U 2 Schuko sockets with hinged covers 250 16 F CH250V/1 (eShop) 1U Schuko socket with hinged cover 250 10 J CH250V/2 (eShop) 2U 2 Schuko sockets with hinged covers 250 10 J IT250V/1 (eShop) 1U Schuko socket with hinged cover 250 16 L IT250V/2 (eShop) 2U 2 Schuko sockets with hinged covers 250 16 L FR250V/1 (eShop) 1U Schuko socket with hinged cover 250 16 E FR250V/2 (eShop) 2U 2 Schuko sockets with hinged covers 250 16 E _CZ250V/2 GB250V/1 (eShop) 1U Schuko socket with hinged cover 250 13 G GB250V/2 (eShop) 2U 2 Schuko sockets with hinged covers 250 13 G DK250V/1 (eShop) 1U Schuko socket with hinged cover 250 16 K DK250V/2 (eShop) 2U 2 Schuko sockets with hinged covers 250 16 K CZ250V/1 (eShop) 1U Schuko socket with hinged cover 250 16 E CZ250V/2 (eShop) 2U 2 Schuko sockets with hinged covers 250 16 E US110V/1 (eShop) 1U Schuko socket with hinged cover 125 15 B US110V/2 (eShop) 2U 2 Schuko sockets with hinged covers 125 15 B _US110V/2 578
