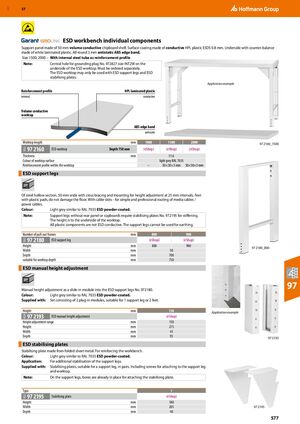

GBP 57 ESD workbench individual components Support panel made of 50 mm volume conductive chipboard shelf. Surface coating made of conductive HPL plastic ESDS 0.8 mm. Underside with counter-balance made of white laminated plastic. All-round 3 mm antistatic ABS edge band. Size 1500; 2000 – With internal steel tube as reinforcement profile Note: Central hole for grounding plug No. 972827 size INT2W on the underside of the ESD worktop. Must be ordered separately. The ESD worktop may only be used with ESD support legs and ESD stabilising plates. Application example Reinforcement profile HPL laminated plastic internal conductive Volume conductive worktop ABS edge band antistatic Worktop length mm 1000 1500 2000 97 2160_1500 97 2160 9GG ESD worktop Depth 750 mm (eShop) (eShop) (eShop) Thickness mm 51.6 Colour of worktop surface light grey RAL 7035 Reinforcement profile within the worktop – 30×30×3 mm 30×30×3 mm ESD support legs ​ Of steel hollow section, 50 mm wide with cross bracing and mounting for height adjustment at 25 mm intervals. Feet with plastic pads, do not damage the floor. With cable slots - for simple and professional routing of media cables / power cables. Colour: Light grey similar to RAL 7035 ESD powder-coated. Note: Support legs without rear panel or cupboards require stabilising plates No. 972195 for stiffening. The height is to the underside of the worktop. All plastic components are not ESD conductive. The support legs cannot be used for earthing. Number of pull-out frames mm 800 900 97 2180 9GG ESD support leg (eShop) (eShop) Height mm 800 900 97 2180_800 Width mm 50 Depth mm 700 suitable for worktop depth mm 750 ESD manual height adjustment ​ Manual height adjustment as a slide-in module into the ESD support legs No. 972180. 97 Colour: Light grey similar to RAL 7035 ESD powder-coated. Supplied with: Set consisting of 2 plug-in modules, suitable for 1 support leg or 2 feet. Height mm 150 Application example 97 2193 9GW ESD manual height adjustment (eShop) Height adjustment range mm 150 Height mm 275 Width mm 45 Depth mm 95 97 2193 ESD stabilising plates ​ Stabilising plate made from folded sheet metal. For reinforcing the workbench. Colour: Light grey similar to RAL 7035 ESD powder-coated. Application: For additional stabilisation of the support legs. Supplied with: Stabilising plates, suitable for a support leg, in pairs. Including screws for attaching to the support leg and worktop. Note: On the support legs, bores are already in place for attaching the stabilising plate. Type 1 97 2195 9GG Stabilising plate (eShop) Height mm 180 Width mm 205 97 2195 Depth mm 40 577
