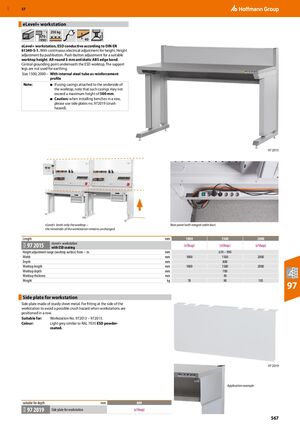

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 567

GBP 57 eLevel+ workstation ​ 250 kg 670- 25 990 40 eLevel+ workstation, ESD conductive according to DIN EN 61340-5-1. With continuous electrical adjustment for height. Height adjustment by pushbutton. Push-button adjustment for a suitable worktop height. All-round 3 mm antistatic ABS edge band. Central grounding point underneath the ESD worktop. The support legs are not used for earthing. Size 1500; 2000 – With internal steel tube as reinforcement profile Note: ■ If using casings attached to the underside of the worktop, note that such casings may not exceed a maximum height of 500 mm. ■ Caution: when installing benches in a row, please use side plates no. 972019 (crush hazard). 97 2015 eLevel+ levels only the worktop – Rear panel with integral cable duct. the remainder of the workstation remains unchanged. Length mm 1000 1500 2000 eLevel+ workstation 97 2015 9GW (eShop) (eShop) (eShop) with ESD coating Height adjustment range (worktop surface) from − to mm 670 – 990 Width mm 1000 1500 2000 Depth mm 800 Worktop length mm 1000 1500 2000 Worktop depth mm 700 Worktop thickness mm 40 Weight kg 78 90 105 97 Side plate for workstation ​ Side plate made of sturdy sheet metal. For fitting at the side of the workstation to avoid a possible crush hazard when workstations are positioned in a row. Suitable for: Workstation No. 972013 – 972015. Colour: Light grey similar to RAL 7035 ESD powder- coated. 97 2019 Application example suitable for depth mm 800 97 2019 9GW Side plate for workstation (eShop) 567
