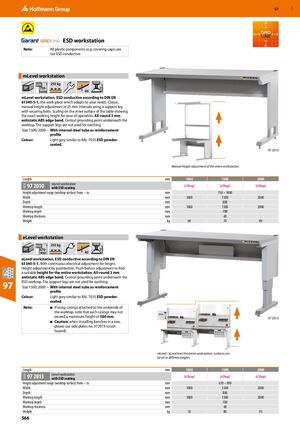

GBP 57 ESD workstation Note: All plastic components (e.g. covering caps) are not ESD conductive. mLevel workstation ​ 250 kg 750- 25 1000 40 mLevel workstation, ESD conductive according to DIN EN 61340-5-1, the work place which adapts to your needs. Classic, manual height adjustment in 25 mm intervals using a support leg with securing bolts. Scaling on the inner surface of the table showing the exact working height for ease of operation. All-round 3 mm antistatic ABS edge band. Central grounding point underneath the worktop. The support legs are not used for earthing. Size 1500; 2000 – With internal steel tube as reinforcement profile Colour: Light grey similar to RAL 7035 ESD powder- coated. 97 2010 Manual height adjustment of the entire workstation. Length mm 1000 1500 2000 mLevel workstation 97 2010 9GW (eShop) (eShop) (eShop) with ESD coating Height adjustment range (worktop surface) from − to mm 750 – 1000 Width mm 1000 1500 2000 Depth mm 800 Worktop length mm 1000 1500 2000 Worktop depth mm 700 Worktop thickness mm 40 Weight kg 60 70 80 eLevel workstation ​ 250 kg 670- 25 990 40 eLevel workstation, ESD conductive according to DIN EN 61340-5-1. With continuous electrical adjustment for height. Height adjustment by pushbutton. Push-button adjustment to find a suitable height for the entire workstation. All-round 3 mm antistatic ABS edge band. Central grounding point underneath the ESD worktop. The support legs are not used for earthing. 97 Size 1500; 2000 – With internal steel tube as reinforcement profile Colour: Light grey similar to RAL 7035 ESD powder- coated. Note: ■ If using casings attached to the underside of the worktop, note that such casings may not exceed a maximum height of 500 mm. 97 2013 ■ Caution: when installing benches in a row, please use side plates no. 972019 (crush hazard). mLevel / eLevel level the entire workstation, surfaces can be set to different heights Length mm 1000 1500 2000 eLevel workstation 97 2013 9GW (eShop) (eShop) (eShop) with ESD coating Height adjustment range (worktop surface) from − to mm 670 – 990 Width mm 1000 1500 2000 Depth mm 800 Worktop length mm 1000 1500 2000 Worktop depth mm 700 Worktop thickness mm 40 Weight kg 70 80 93 566
