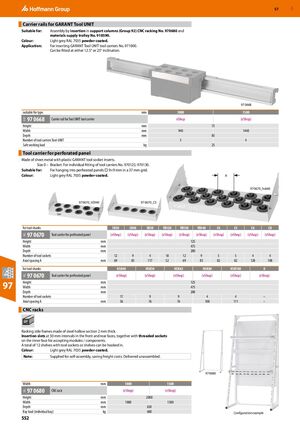

GBP 57 Carrier rails for GARANT Tool UNIT ​ Suitable for: Assembly by insertion in support columns (Group 92) CNC racking No. 970680 and materials supply trolley No. 918590. Colour: Light grey RAL 7035 powder-coated. Application: For inserting GARANT Tool UNIT tool carriers No. 971000. Can be fitted at either 12.5° or 25° inclination. 97 0668 suitable for type mm 1000 1500 97 0668 Carrier rail for Tool UNIT tool carrier eShop (eShop) 91P Height mm 75 Width mm 940 1440 Depth mm 85 Number of tool carriers Tool-UNIT 3 4 Safe working load kg 25 Tool carrier for perforated panel ​ Made of sheet metal with plastic GARANT tool socket inserts. Size 0 – Bracket: For individual fitting of tool carriers No. 970125; 970130. Suitable for: For hanging into perforated panels □ 9×9 mm in a 37 mm grid. Colour: Light grey RAL 7035 powder-coated. A 97 0670_hsk40 97 0670_VDI40 97 0670_C5 for tool shanks SK30 SK40 SK50 VDI20 VDI30 VDI40 C4 C5 C6 C8 97 0670 Tool carrier for perforated panel (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 91L Height mm 125 Width mm 475 Depth mm 200 Number of tool sockets 12 9 4 18 12 9 5 5 4 4 Axial spacing A mm 69 85 117 52 69 85 82 82 128 108 for tool shanks HSK40 HSK50 HSK63 HSK80 HSK100 0 97 0670 Tool carrier for perforated panel (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 91L 97 Height mm 125 Width mm 475 Depth mm 200 Number of tool sockets 17 9 9 4 4 – Axial spacing A mm 56 76 76 108 111 – CNC racks ​ Racking stile frames made of steel hollow section 2 mm thick. Insertion slots at 50 mm intervals in the front and rear faces, together with threaded sockets on the inner face for accepting modules / components. A total of 12 shelves with tool sockets or shelves can be hooked in. Colour: Light grey RAL 7035 powder-coated. Note: Supplied for self-assembly, saving freight costs. Delivered unassembled. 97 0680 Width mm 1000 1500 97 0680 CNC rack (eShop) (eShop) 91L Height mm 2000 Width mm 1000 1500 Depth mm 650 Bay load (individual bay) kg 600 Configuration example 552
