Производственная мебель и системы хранения Hoffmann Group 2026 - страница 519

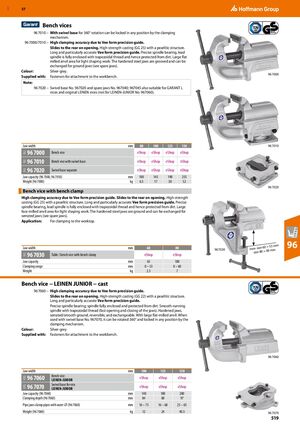

GBP 57 ​ Bench vices 96 7010 – With swivel base for 360° rotation can be locked in any position by the clamping mechanism. 96 7000/7010 – High clamping accuracy due to Vee form precision guide. Slides to the rear on opening. High-strength casting (GG 25) with a pearlitic structure. Long and particularly accurate Vee form precision guide. Precise spindle bearing, lead spindle is fully enclosed with trapezoidal thread and hence protected from dirt. Large flat milled anvil area for light shaping work. The hardened steel jaws are grooved and can be exchanged for ground jaws (see spare jaws). Colour: Silver-grey. 96 7000 Supplied with: Fasteners for attachment to the workbench. Note: 96 7020 – Swivel base No. 967020 and spare jaws No. 967040; 967045 also suitable for GARANT L vices and original LEINEN vices (not for LEINEN-JUNIOR No. 967060). Jaw width mm 80 100 125 150 96 7010 96 7000 Bench vice eShop eShop eShop eShop 91J 96 7010 Bench vice with swivel base eShop eShop eShop eShop 91J 96 7020 Swivel base separate eShop eShop eShop eShop 91J Jaw capacity (96 7000, 96 7010) mm 100 145 190 255 Weight (96 7000) kg 6.5 17 30 52 96 7020 Bench vice with bench clamp ​ High clamping accuracy due to Vee form precision guide. Slides to the rear on opening. High-strength casting (GG 25) with a pearlitic structure. Long and particularly accurate Vee form precision guide. Precise spindle bearing, lead spindle is fully enclosed with trapezoidal thread and hence protected from dirt. Large face milled anvil area for light shaping work. The hardened steel jaws are ground and can be exchanged for serrated jaws (see spare jaws). Application: For clamping to the worktop. Jaw width mm 60 80 96 7030 = 53 mm max. size 60 mm 96 size 80 = 60 96 7030 Table / bench vice with bench clamp eShop eShop 91J Jaw capacity mm 65 100 Clamping range mm 0 – 53 0 – 60 Weight kg 2.5 7 ​Bench vice − LEINEN JUNIOR − cast 96 7060 – High clamping accuracy due to Vee form precision guide. Slides to the rear on opening. High-strength casting (GG 22) with a pearlitic structure. Long and particularly accurate Vee form precision guide. Precise spindle bearing; spindle fully enclosed and protected from dirt. Smooth-running spindle with trapezoidal thread (fast opening and closing of the jaws). Hardened jaws, serrated/smooth ground, reversible, and exchangeable. With large flat-milled anvil. When used with swivel base No. 967070, it can be rotated 360° and locked in any position by the clamping mechanism. Colour: Silver-grey Supplied with: Fasteners for attachment to the workbench. 96 7060 Jaw width mm 100 125 150 Bench vice 96 7060 eShop eShop eShop 97G LEINEN-JUNIOR Swivel base for vice 96 7070 eShop eShop eShop 97G LEINEN-JUNIOR Jaw capacity (96 7060) mm 140 180 280 Clamping depth (96 7060) mm 84 88 97 Pipe jaws clamp pipes with outer ⌀ (96 7060) mm 16 – 75 16 – 68 25 – 65 Weight (96 7060) kg 12 24 40.5 96 7070 519
