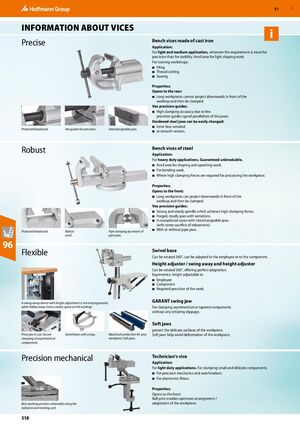

GBP 57 INFORMATION ABOUT VICES Precise Bench vices made of cast iron Application: For light and medium application, wherever the requirement is more for precision than for stability. Anvil area for light shaping work. For training workshops: ■ Filing ■ Thread cutting ■ Sawing Properties: Opens to the rear: ■ Long workpieces cannot project downwards in front of the worktop and then be clamped. Vee precision guides: ■ High clamping accuracy due to Vee precision guides (good parallelism of the jaws). Hardened steel jaws can be easily changed: ■ Inner face serrated Protected headstock. Vee guides for precision. Interchangeable jaws. ■ or smooth version. Robust Bench vices of steel Application: For heavy duty applications. Guaranteed unbreakable. ■ Anvil area for shaping and upsetting work. ■ For bending work. ■ Where high clamping forces are required for processing the workpiece. Properties: Opens to the front: ■ Long workpieces can project downwards in front of the worktop and then be clamped. Vee precision guides: ■ Strong and sturdy spindle which achieves high clamping forces. ■ Forged, sturdy jaws with serrations. ■ In exceptional cases with interchangeable jaws (with some sacrifice of robustness). ■ With or without pipe jaws. Protected headstock. Robust Pipe clamping by means of anvil. pipe jaws. 96 Flexible Swivel base Can be rotated 360°, can be adapted to the employee or to the component. Height adjuster / swing away and height adjuster Can be rotated 360°, offering perfect adaptation. Ergonomics: height adjustable to ■ Employee ■ Component ■ Required precision of the work. A swing-away device with height adjustment is not only ergonomic, GARANT swing jaw when folded away it also creates space on the worktop. For clamping asymmetrical or tapered components without any irritating slippage. Soft jaws protect the delicate surfaces of the workpiece. Pivot jaw in use: Secure Swivel base with a stop. Maximum protection for your Soft jaws help avoid deformation of the workpiece. clamping of asymmetrical workpiece: Soft jaws. components. Precision mechanical Technician‘s vice Application: For light duty applications. For clamping small and delicate components. ■ For precision mechanics and watchmakers. ■ For electronics fitters. Properties: Opens to the front. Ball joint enables optimum arrangement / Best working position achievable using the adaptation of the workpiece. ball joint and rotating unit. 518
