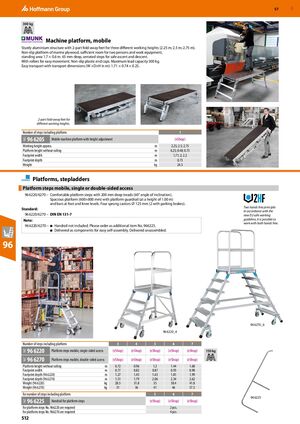

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 512

GBP 57 300 kg Machine platform, mobile Sturdy aluminium structure with 2-part fold-away feet for three different working heights (2.25 m; 2.5 m; 2.75 m). Non-slip platform of marine plywood, sufficient room for two persons and work equipment, standing area 1.7 × 0.6 m. 65 mm deep, serrated steps for safe ascent and descent. With rollers for easy movement. Non-slip plastic end caps. Maximum load capacity 300 kg. Easy transport with transport dimensions (W ×D×H in m): 1.71 × 0.74 × 0.25. 2-part fold-away feet for different working heights. Number of steps including platform 1 96 6205 98G Mobile machine platform with height adjustment (eShop) Working height approx. m 2.25; 2.5; 2.75 Platform height without railing m 0.25; 0.48; 0.73 Footprint width m 1.71; 2; 2.2 Footprint depth m 0.73 Weight kg 24.5 ​ Platforms, stepladders Platform steps mobile, single or double-sided access ​ 96 6220/6270 – Comfortable platform steps with 200 mm deep treads (60° angle of inclination). Spacious platform (600×800 mm) with platform guardrail (at a height of 1.00 m) and bars at foot and knee levels. Four sprung castors ⌀ 125 mm (2 with parking brakes). Two hands free principle: Standard: In accordance with the 96 6220/6270 – DIN EN 131-7 new EU safe working Note: guideline, it is possible to work with both hands free. 96 6220/6270 – ■ Handrail not included. Please order as additional item No. 966225. ■ Delivered as components for easy self-assembly. Delivered unassembled. 96 96 6270_6 96 6220_4 Number of steps including platform 3 4 5 6 7 96 6220 Platform steps mobile, single-sided access (eShop) (eShop) (eShop) (eShop) (eShop) 96Z 150 kg 96 6270 Platform steps mobile, double-sided access (eShop) (eShop) (eShop) (eShop) (eShop) 96Z Platform height without railing m 0.72 0.96 1.2 1.44 1.68 Footprint width m 0.77 0.82 0.87 0.93 0.98 Footprint depth (96 6220) m 1.27 1.45 1.63 1.81 1.99 Footprint depth (96 6270) m 1.51 1.79 2.06 2.34 2.62 Weight (96 6220) kg 28.5 31.8 35 38.4 41.8 Weight (96 6270) kg 31 36 41 46 57.5 for number of steps including platform 5 6 7 96 6225 96 6225 Handrail for platform steps (eShop) (eShop) (eShop) 96Z for platform steps No. 966220 are required 2 pcs. for platform steps No. 966270 are required 4 pcs. 512
