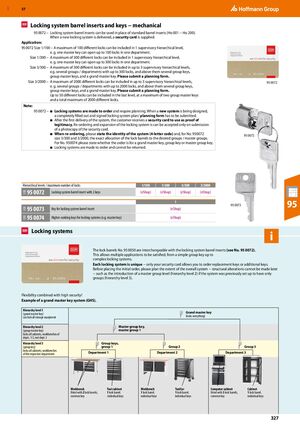

GBP 57 ​ Locking system barrel inserts and keys − mechanical 95 0072 – Locking system barrel inserts can be used in place of standard barrel inserts (Ho 001 − Ho 200). When a new locking system is delivered, a security card is supplied. Application: 95 0072 Size 1/100 – A maximum of 100 different locks can be included in 1 supervisory hierarchical level, e. g. one master key can open up to 100 locks in one department. Size 1/300 – A maximum of 300 different locks can be included in 1 supervisory hierarchical level, e. g. one master key can open up to 300 locks in one department. Size 3/300 – A maximum of 300 different locks can be included in up to 3 supervisory hierarchical levels, e.g. several groups / departments with up to 300 locks, and above them several group keys, group master keys, and a grand master key. Please submit a planning form. Size 3/2000 – A maximum of 2000 different locks can be included in up to 3 supervisory hierarchical levels, ​ 95 0072 e. g. several groups / departments with up to 2000 locks, and above them several group keys, group master keys, and a grand master key. Please submit a planning form. Up to 50 different locks can be included in the last level, at a maximum of two group master keys and a total maximum of 2000 different locks. Note: 95 0072 – ■ Locking systems are made to order and require planning. When a new system is being designed, a completely filled out and signed locking system plan/ planning form has to be submitted. ■ After the first delivery of the system, the customer receives a security card to use as proof of legitimacy. Re-ordering and expansion of the locking system is can be accepted only on submission of a photocopy of the security card. ■ When re-ordering, please state the identity of the system (4-letter code) and, for No. 950072 95 0072 size 3/300 and 3/2000, the exact allocation of the lock barrels to the desired groups / master groups. For No. 950074 please state whether the order is for a grand master key, group key or master group key. ■ Locking systems are made to order and cannot be returned. Hierarchical levels / maximum number of locks 1/100 1/300 3/300 3/2000 95 0072 Locking system barrel insert with 2 keys (eShop) (eShop) (eShop) (eShop) 93B ​ 95 0073 Key for locking system barrel insert 1 (eShop) 95 0073 95 93B 95 0074 Higher-ranking keys for locking systems (e.g. master key) (eShop) 93B Locking systems The lock barrels No. 95 0050 are interchangeable with the locking system barrel inserts (see No. 95 0072). This allows multiple applications to be satisfied, from a simple group key up to complex locking systems. Each locking system is unique − only your security card allows you to order replacement keys or additional keys. Before placing the initial order, please plan the extent of the overall system − structural alterations cannot be made later − such as the introduction of a master group level (hierarchy level 2) if the system was previously set up to have only groups (hierarchy level 3). Flexibility combined with high security! Example of a grand master key system (GHS). Hierarchy level 1 (grand master key) Grand master key can lock all storage equipment (locks everything) Hierarchy level 2 Master group key, (group master key) master group 1 locks all cabinets, workbenches of depts. 1/2, not dept. 3 Hierarchy level 3 Group keys, (group key) group 1 Group 2 Group 3 locks all cabinets, workbenches of the respective department Department 1 Department 2 Department 3 Workbench Tool cabinet Workbench ToolCar Computer cabinet Cabinet fitted with 2 lock barrels, 1 lock barrel, 1 lock barrel, 1 lock barrel, fitted with 3 lock barrels, 1 lock barrel, common key individual keys individual keys individual keys common key individual keys 327
