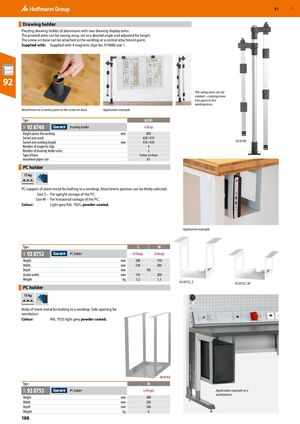

GBP 57 Drawing holder ​ Pivoting drawing holder of aluminium with two drawing display arms. The pivoted arms can be swung away, set at a desired angle and adjusted for height. The screw-on base can be attached to the worktop at a central attachment point. Supplied with: Supplied with 4 magnetic clips No. 974880 size 1. 92 The swing arms can be rotated – creating more free space in the working area. Attachment at a central point in the screw-on base. Application example Type A2/A1 92 8740 Drawing holder eShop 91F Height above the worktop mm 820 Swivel arm reach 628 / 813 Swivel arm working length mm 510 / 695 92 8740 Number of magnetic clips 4 Number of drawing holder arms 2 Type of base Screw-on base maximum paper size A1 PC holder ​ 15 kg PC support of sheet metal for bolting to a worktop. Attachment position can be freely selected. Size S – For upright storage of the PC. Size W – For horizontal storage of the PC. Colour: Light grey RAL 7035, powder-coated. Application example Type S W 92 8752 PC holder (eShop) (eShop) 91P Height mm 200 150 Width mm 230 280 Depth mm 185 Usable width mm 145 200 Weight kg 1.2 1.3 92 8752_S 92 8752_W PC holder ​ 15 kg Body of sheet metal for bolting to a worktop. Side opening for ventilation. Colour: RAL 7035 light grey powder coated. 92 8753 Type M 92 8753 PC holder (eShop) 91P Application example at a workstation. Height mm 500 Width mm 250 Depth mm 540 Weight kg 6 188
