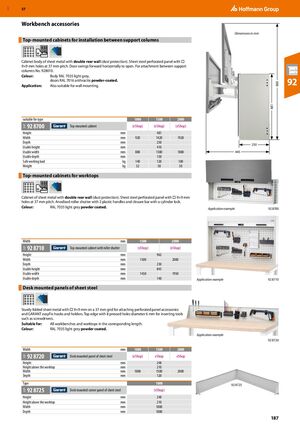

GBP 57 ​Workbench accessories Dimensions in mm Top-mounted cabinets for installation between support columns ​ Cabinet body of sheet metal with double rear wall (dust protection). Sheet steel perforated panel with □ 9×9 mm holes at 37 mm pitch. Door swings forward horizontally to open. For attachment between support columns No. 928010. Colour: Body RAL 7035 light grey, doors RAL 7016 anthracite powder-coated. 92 860 Application: Also suitable for wall mounting. 481 suitable for type 1000 1500 2000 92 8700 Top-mounted cabinet (eShop) (eShop) (eShop) 91P Height mm 481 Width mm 920 1420 1920 Depth mm 250 250 Usable height mm 410 Usable width mm 880 1380 1880 445 Usable depth mm 150 Safe working load kg 140 120 100 Weight kg 32 38 50 Top-mounted cabinets for worktops ​ Cabinet of sheet metal with double rear wall (dust protection). Sheet steel perforated panel with □ 9×9 mm holes at 37 mm pitch. Anodised roller shutter with 2 plastic handles and closure bar with a cylinder lock. Colour: RAL 7035 light grey powder coated. Application example 92 8700 Width mm 1500 2000 92 8710 Top-mounted cabinet with roller shutter (eShop) (eShop) 91P Height mm 962 Width mm 1500 2000 Depth mm 230 Usable height mm 845 Usable width mm 1450 1950 Usable depth mm 140 Application example 92 8710 Desk mounted panels of sheet steel ​ Sturdy folded sheet metal with □ 9×9 mm on a 37 mm grid for attaching perforated panel accessories and GARANT easyFix hooks and holders. Top edge with 8 pressed holes diameter 6 mm for inserting tools such as screwdrivers. Suitable for: All workbenches and worktops in the corresponding length. Colour: RAL 7035 light grey powder coated. Application example 92 8720 Width mm 1000 1500 2000 92 8720 Desk mounted panel of sheet steel (eShop) eShop eShop 91P Height mm 248 Height above the worktop mm 210 Width mm 1000 1500 2000 Depth mm 120 Type 1000 92 8725 92 8725 Desk mounted corner panel of sheet steel (eShop) 91P Height mm 248 Height above the worktop mm 210 Width mm 1000 Depth mm 1000 187
