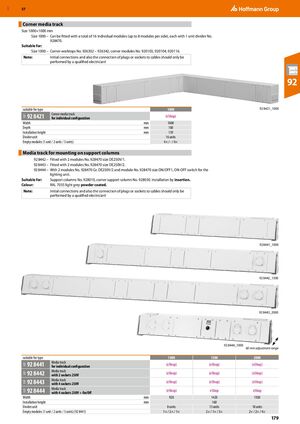

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 179

GBP 57 Corner media track ​ Size 1000×1000 mm Size 1000 – Can be fitted with a total of 16 individual modules (up to 8 modules per side), each with 1 unit divider No. 928470. Suitable for: Size 1000 – Corner worktops No. 926302 – 926342, corner modules No. 920103, 920104, 920116. Note: Initial connections and also the connection of plugs or sockets to cables should only be performed by a qualified electrician! 92 suitable for type 1000 92 8421_1000 Corner media track 92 8421 (eShop) 91P for individual configuration Width mm 1000 Depth mm 100 Installation height mm 139 Divider unit 16 units Empty modules (1 unit / 2 units / 3 units) 4× / - / 4× Media track for mounting on support columns ​ 92 8442 – Fitted with 2 modules No. 928470 size DE250V/1. 92 8443 – Fitted with 2 modules No. 928470 size DE250V/2. 92 8444 – With 2 modules No. 928470 Gr. DE250V/2 and module No. 928470 size ON/OFF1, ON-OFF switch for the lighting unit. Suitable for: Support columns No. 928010, corner support column No. 928030. Installation by insertion. Colour: RAL 7035 light grey powder coated. Note: Initial connections and also the connection of plugs or sockets to cables should only be performed by a qualified electrician! 92 8441_1000 92 8442_1500 92 8443_2000 92 8444_1000 60 mm adjustment range suitable for type 1000 1500 2000 Media track 92 8441 (eShop) (eShop) (eShop) 91P for individual configuration Media track 92 8442 (eShop) (eShop) (eShop) 91P with 2 sockets 250V Media track 92 8443 (eShop) (eShop) (eShop) 91P with 4 sockets 250V Media track 92 8444 (eShop) eShop eShop 91P with 4 sockets 250V + On/Off Width mm 920 1420 1920 Installation height mm 160 Divider unit 8 units 13 units 18 units Empty modules (1 unit / 2 units / 3 units) (92 8441) 1× / 2× / 1× 2× / 1× / 3× 2× / 2× / 4× 179
