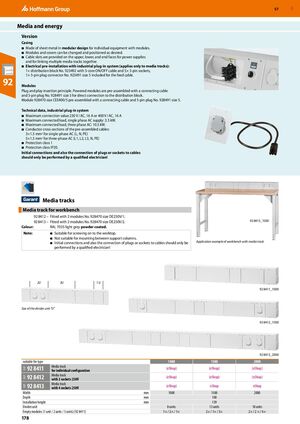

GBP 57 Media and energy Version Casing ■ Made of sheet metal in modular design for individual equipment with modules. ■ Modules and covers can be changed and positioned as desired. ■ Cable slots are provided on the upper, lower, and end faces for power supplies and for linking multiple media tracks together. ■ Electrical pre-installation with industrial plug-in system (applies only to media tracks): 1× distribution block No. 923492 with 5-core ON/OFF cable and 5× 3-pin sockets, 1× 5-pin plug connector No. 923491 size 5 included for the feed cable. 92 Modules Plug and play insertion principle. Powered modules are pre-assembled with a connecting cable and 3-pin plug No. 928491 size 3 for direct connection to the distribution block. Module 928470 size CEE400/5 pre-assembled with a connecting cable and 5-pin plug No. 928491 size 5. Technical data, industrial plug-in system ■ Maximum connection value 230 V / AC, 16 A or 400 V / AC, 16 A ■ Maximum connected load, single phase AC supply: 3.5 kW. ■ Maximum connected load, three phase AC: 10.5 kW. ■ Conductor cross-sections of the pre-assembled cables: 3×1.5 mm2 for single-phase AC (L, N, PE) 5×1.5 mm2 for three-phase AC (L1, L2, L3, N, PE) ■ Protection class 1 ■ Protection class IP20. Initial connections and also the connection of plugs or sockets to cables should only be performed by a qualified electrician! Media tracks Media track for workbench ​ 92 8412 – Fitted with 2 modules No. 928470 size DE250V/1. 92 8413 – Fitted with 2 modules No. 928470 size DE250V/2. 92 8413_1500 Colour: RAL 7035 light grey powder coated. Note: ■ Suitable for screwing on to the worktop. ■ Not suitable for mounting between support columns. ■ Initial connections and also the connection of plugs or sockets to cables should only be Application example of workbench with media track performed by a qualified electrician! 2U 3U 1U 92 8411_1000 Size of the divider unit “U” 92 8412_1500 92 8413_2000 suitable for type 1000 1500 2000 Media track 92 8411 (eShop) (eShop) (eShop) 91P for individual configuration Media track 92 8412 (eShop) (eShop) (eShop) 91P with 2 sockets 250V Media track 92 8413 (eShop) eShop eShop 91P with 4 sockets 250V Width mm 1000 1500 2000 Depth mm 100 Installation height mm 139 Divider unit 8 units 13 units 18 units Empty modules (1 unit / 2 units / 3 units) (92 8411) 1× / 2× / 1× 2× / 1× / 3× 2× / 2 × / 4× 178
