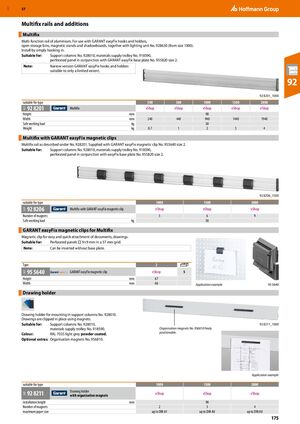

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 175

GBP 57 ​Multifix rails and additions Multifix ​ Multi-function rail of aluminium. For use with GARANT easyFix hooks and holders, open storage bins, magnetic stands and shadowboards, together with lighting unit No. 928630 (from size 1000). Install by simply hooking in. Suitable for: Support columns No. 928010, materials supply trolley No. 918590, perforated panel in conjunction with GARANT easyFix base plate No. 955820 size 2. Note: Narrow version GARANT easyFix hooks and holders suitable to only a limited extent. 92 92 8201_1000 suitable for type 300 500 1000 1500 2000 92 8201 Multifix eShop eShop eShop eShop eShop 91P Height mm 90 Width mm 240 440 940 1440 1940 Safe working load kg 50 Weight kg 0.7 1 2 3 4 Multifix with GARANT easyFix magnetic clips ​ Multifix rail as described under No. 928201. Supplied with GARANT easyFix magnetic clip No. 955640 size 2. Suitable for: Support columns No. 928010, materials supply trolley No. 918590, perforated panel in conjunction with easyFix base plate No. 955820 size 2. 92 8206_1500 suitable for type 1000 1500 2000 92 8206 Multifix with GARANT easyFix magnetic clip eShop eShop eShop 91P Number of magnets 3 6 9 Safe working load kg 50 GARANT easyFix magnetic clips for Multifix ​ Magnetic clip for easy and quick attachment of documents, drawings. Suitable for: Perforated panels □ 9×9 mm in a 37 mm grid. Note: Can be inserted without base plate. Type 2 95 5640 GARANT easyFix magnetic clip eShop 5 91F Height mm 67 ​ Width mm 66 ​ Application example ​ 95 5640 Drawing holder ​ Drawing holder for mounting in support columns No. 928010. Drawings are clipped in place using magnets. Suitable for: Support columns No. 928010, 92 8211_1000 materials supply trolley No. 918590. Organisation magnets No. 956810 freely positionable. Colour: RAL 7035 light grey powder coated. Optional extras: Organisation magnets No. 956810. Application example suitable for type 1000 1500 2000 Drawing holder 92 8211 eShop eShop eShop 91P with organisation magnets Installation height mm 90 Number of magnets 2 3 4 maximum paper size up to DIN A1 up to DIN A0 up to DIN A0 175
