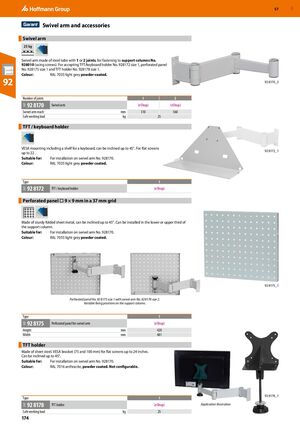

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 174

GBP 57 ​ Swivel arm and accessories Swivel arm ​ 25 kg Swivel arm made of steel tube with 1 or 2 joints, for fastening to support columns No. 928010 (using screws). For accepting TFT/keyboard holder No. 928172 size 1, perforated panel No. 928175 size 1 and TFT holder No. 928178 size 1. Colour: RAL 7035 light grey powder-coated. 92 92 8170_2 Number of joints 1 2 92 8170 Swivel arm (eShop) (eShop) 91P Swivel arm reach mm 310 560 Safe working load kg 25 TFT / keyboard holder ​ VESA mounting including a shelf for a keyboard, can be inclined up to 45°. For flat screens 92 8172_1 up to 22 . Suitable for: For installation on swivel arm No. 928170. Colour: RAL 7035 light grey powder coated. Type 1 92 8172 TFT / keyboard holder (eShop) 91P Perforated panel □ 9 × 9 mm in a 37 mm grid ​ Made of sturdy folded sheet metal, can be inclined up to 45°. Can be installed in the lower or upper third of the support column. Suitable for: For installation on swivel arm No. 928170. Colour: RAL 7035 light grey powder coated. 92 8175_1 Perforated panel No. 92 8175 size 1 with swivel arm No. 92 8170 size 2. Variable fixing positions on the support column. Type 1 92 8175 Perforated panel for swivel arm (eShop) 91P Height mm 420 Width mm 481 TFT holder ​ Made of sheet steel. VESA bracket (75 and 100 mm) for flat screens up to 24 inches. Can be inclined up to 45°. Suitable for: For installation on swivel arm No. 928170. Colour: RAL 7016 anthracite, powder coated. Not configurable. 92 8178_1 Type 1 92 8178 TFT holder (eShop) Application illustration 91P Safe working load kg 25 174
