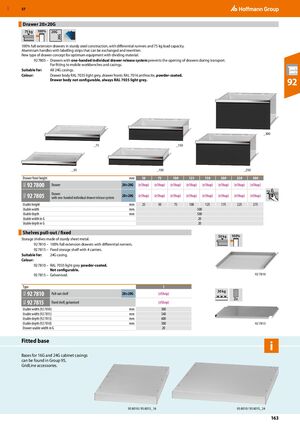

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 163

GBP 57 Drawer 20×20G ​ 75 kg 100% 20G 20G 100% full extension drawers in sturdy steel construction, with differential runners and 75 kg load capacity. Aluminium handles with labelling strips that can be exchanged and rewritten. New type of drawer concept for optimum equipment with dividing material. 92 7805 – Drawers with one-handed individual drawer release system prevents the opening of drawers during transport. For fitting to mobile workbenches and casings. Suitable for: All 24G casings. Colour: Drawer body RAL 7035 light grey, drawer fronts RAL 7016 anthracite, powder-coated. Drawer body not configurable, always RAL 7035 light grey. 92 _300 _75 _150 _50 _100 _250 Drawer front height mm 50 75 100 125 150 200 250 300 92 7800 9GG Drawer 20×20G (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) Drawer 92 7805 9GG 20×20G (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) with one-handed individual drawer release system Usable height mm 25 50 75 100 125 175 225 275 Usable width mm 500 Usable depth mm 500 Usable width in G 20 Usable depth in G 20 Shelves pull-out / fixed ​ 50 kg 100% Storage shelves made of sturdy sheet metal. 92 7810 – 100% full extension drawers with differential runners. 92 7815 – Fixed storage shelf with 4 carriers. Suitable for: 24G casing. Colour: 92 7810 – RAL 7035 light grey powder-coated. Not configurable. 92 7815 – Galvanised. 92 7810 Type 1 30 kg 92 7810 9GG Pull-out shelf 20×20G (eShop) Zn 92 7815 9GG Fixed shelf, galvanised (eShop) Usable width (92 7810) mm 500 Usable width (92 7815) mm 540 Usable depth (92 7815) mm 600 Usable depth (92 7810) mm 500 92 7815 Drawer usable width in G 20 Fitted base Bases for 16G and 24G cabinet casings can be found in Group 95, GridLine accessories. 95 8010 / 95 8015_16 95 8010 / 95 8015_24 163
