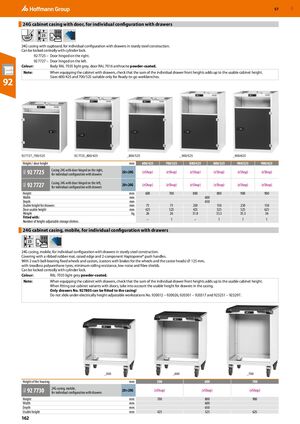

GBP 57 24G cabinet casing with door, for individual configuration with drawers ​ 25 180° 24G casing with cupboard, for individual configuration with drawers in sturdy steel construction. Can be locked centrally with cylinder lock. 92 7725 – Door hinged on the right. 92 7727 – Door hinged on the left. Colour: Body RAL 7035 light grey, door RAL 7016 anthracite powder-coated. Note: When equipping the cabinet with drawers, check that the sum of the individual drawer front heights adds up to the usable cabinet height. Sizes 600/425 and 700/525 suitable only for Ready-to-go workbenches. 92 92 7727_700/525 92 7725_800/425 _800/525 _900/525 _900/625 Height / door height mm 600/425 700/525 800/425 800/525 900/525 900/625 Casing 24G with door hinged on the right, 92 7725 9GG 20×20G (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) for individual configuration with drawers Casing 24G with door hinged on the left, 92 7727 9GG 20×20G (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) for individual configuration with drawers Height mm 600 700 800 800 900 900 Width mm 600 Depth mm 650 Usable height for drawers mm 75 75 250 150 250 150 Door usable height mm 425 525 425 525 525 625 Weight kg 26 26 31.8 33.3 35.3 36 Fitted with: – 1 – 1 1 1 Number of height-adjustable storage shelves 24G cabinet casing, mobile, for individual configuration with drawers ​ 25 24G casing, mobile, for individual configuration with drawers in sturdy steel construction. Covering with a ribbed rubber mat, raised edge and 2-component Haptoprene® push handles. With 2 each ball-bearing fixed wheels and castors, (castors with brakes for the wheels and the castor heads) ⌀ 125 mm, with treadless polyurethane tyres, minimum rolling resistance, low noise and fibre shields. Can be locked centrally with cylinder lock. Colour: RAL 7035 light grey powder-coated. Note: When equipping the cabinet with drawers, check that the sum of the individual drawer front heights adds up to the usable cabinet height. When fitting out cabinet variants with doors, take into account the usable height for drawers in the casing. Only drawers No. 927805 can be fitted to the casing! Do not slide under electrically height-adjustable workstations No. 920012 – 920026, 920301 – 920317 and 923251 – 923297. _500 _600 _700 Height of the housing mm 500 600 700 24G casing, mobile, 92 7730 9GG 20×20G (eShop) (eShop) (eShop) for individual configuration with drawers Height mm 700 800 900 Width mm 600 Depth mm 650 Usable height mm 425 525 625 162
