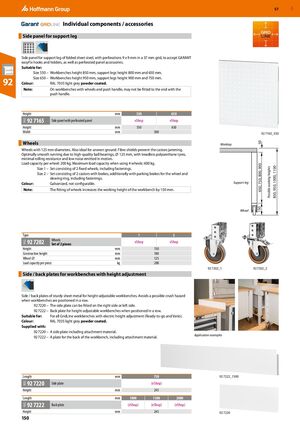

GBP 57 ​ Individual components / accessories Side panel for support leg ​ Side panel for support leg of folded sheet steel, with perforations 9 x 9 mm in a 37 mm grid, to accept GARANT easyFix hooks and holders, as well as perforated panel accessories. Suitable for: Size 550 – Workbenches height 850 mm, support legs height 800 mm and 650 mm. Size 650 – Workbenches height 950 mm, support legs height 900 mm and 750 mm. 92 Colour: RAL 7035 light grey powder coated. Note: On workbenches with wheels and push handle, may not be fitted to the end with the push handle. Height mm 550 650 92 7165 9GG Side panel with perforated panel eShop eShop Height mm 550 650 Width mm 500 92 7165_550 Wheels ​ 50 Worktop Wheels with 125 mm diameters. Also ideal for uneven ground. Fibre shields prevent the castors jamming. Optimally smooth running due to high-quality ball bearings, ⌀ 125 mm, with treadless polyurethane tyres, minimal rolling resistance and low noise emitted in motion. Load capacity per wheel: 200 kg. Maximum load capacity when using 4 wheels: 600 kg. 650, 750, 800, 900 850, 950, 1000, 1100 Possible working heights Size 1 – Set consisting of 2 fixed wheels, including fastenings. Size 2 – Set consisting of 2 castors with brakes, additionally with parking brakes for the wheel and slewing ring, including fastenings. Colour: Galvanized, not configurable. Support leg Note: The fitting of wheels increases the working height of the workbench by 150 mm. 150 Wheel Type 1 2 Wheels 92 7202 9GG eShop eShop Set of 2 pieces Height mm 150 Construction height mm 180 Wheel ⌀ mm 125 Load capacity per piece kg 200 92 7202_1 92 7202_2 Side / back plates for workbenches with height adjustment ​ Side / back plates of sturdy sheet metal for height-adjustable workbenches. Avoids a possible crush hazard when workbenches are positioned in a row. 92 7220 – The side plate can be fitted on the right side or left side. 92 7222 – Back plate for height-adjustable workbenches when positioned in a row. Suitable for: For all GridLine workbenches with electric height adjustment (Ready-to-go and Vario). Colour: RAL 7035 light grey powder coated. Supplied with: 92 7220 – A side plate including attachment material. Application examples 92 7222 – A plate for the back of the workbench, including attachment material. Length mm 750 92 7222_1500 92 7220 9GG Side plate (eShop) Height mm 245 Length mm 1000 1500 2000 92 7222 9GG Back plate (eShop) (eShop) (eShop) Height mm 245 92 7220 150
