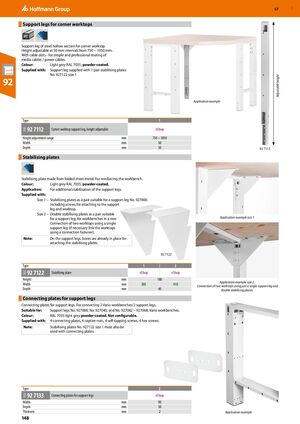

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 148

GBP 57 Support legs for corner worktops ​ Support leg of steel hollow section for corner worktop. Height adjustable at 50 mm intervals from 750 − 1050 mm. With cable slots - for simple and professional routing of media cables / power cables. Colour: Light grey RAL 7035, powder-coated. Supplied with: Support leg supplied with 1 pair stabilising plates No. 927122 size 1 Adjustable height 92 Application example Type 1 92 7112 9GG Corner worktop support leg, height adjustable eShop Height adjustment range mm 750 – 1050 Width mm 50 Depth mm 50 92 7112 Stabilising plates ​ Stabilising plate made from folded sheet metal. For reinforcing the workbench. Colour: Light grey RAL 7035, powder-coated. Application: For additional stabilisation of the support legs. Supplied with: Size 1 – Stabilising plates as a pair suitable for a support leg No. 927000. Including screws for attaching to the support leg and worktop. Size 2 – Double stabilising plates as a pair suitable for a support leg, for workbenches in a row: Application example size 1 Connection of two worktops using a single support leg (if necessary link the worktops using a connection fastener). Note: On the support legs, bores are already in place for attaching the stabilising plates. 92 7122 Type 1 2 92 7122 9GG Stabilising plate eShop eShop Height mm 180 Application example size 2. Width mm 205 410 Connection of two worktops using just a single support leg and Depth mm 40 double stabilising plates. Connecting plates for support legs ​ Connecting plates for support legs. For connecting 2 Vario workbenches/2 support legs. Suitable for: Support legs No. 927000, No. 927040, and No. 927062 – 927068, Vario workbenches. Colour: RAL 7035 light grey powder-coated. Not configurable. Supplied with: 4 connecting plates, 4 captive nuts, 4 self-tapping screws, 4 hex screws. Note: Stabilising plates No. 927122 size 1 must also be used with connecting plates. Type 2 92 7133 9GG Connecting plates for support legs eShop Width mm 90 Depth mm 50 Thickness mm 2 Application example 148
