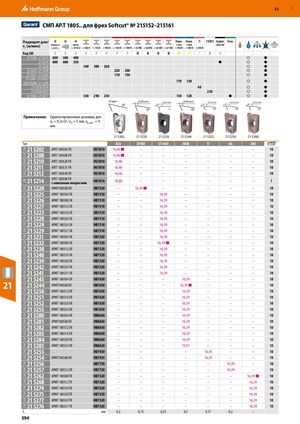

СМП AP.T 1805.. для фрез Softcut® № 215152–215161
| Подходит для/ vc [м/мин] | ||||||||||
| Код ISO | N N N P | P P | P P | H H | H H | M M | S K | N | ||
| 21 5202–21 5212 21 5214 | 600 500 400 600 600 550 | ● | ○ ○ | ● ● | ||||||
| 21 5220 | 340 | 300 260 | ○ ○ | ● ● | ||||||
| 21 5223–21 5229 | 220 200 | |||||||||
| 21 5231–21 5242 | 170 150 | ○ | ● | |||||||
| 21 5243– 21 5252/ 5255/ 5280–21 5285 21 5253/ 5254 | 170 130 | 40 | ○ ○ | ● ● | ||||||
| 21 5256/ 5257 21 5262–21 5277 | 330 | 290 250 | 150 120 | 250 | ● | ○ ○ | ● ● | |||
| ос | трая ° | 0,05 mm | 0,24 mm | 0,05 mm | 0,15 mm | 0,15 mm | 0,15 mm | |||
| 30 | ° 15° | ° 10° | ° 10° | ° 10° | ||||||
| 26° | 5 | 26° | 20 | 20 | 20 | |||||
| Примечание: | Ориентировочные режим ae= 0,3×D / ap= 5 мм, ap ма | ы для кс= 9 | ||||||||
| мм. | . | |||||||||
| 21 5202 | 21 5220 | 21 5226 | 21 5244 | 21 5253 | 21 5256 | 21 5268 | ||||
| Тип | ALU | ST900 | ST1400 | INOX | TI | GG | UNI | |||
| 21A 21 5202 | APET 180505 FR | HU7810 | 16,46 ■ | – | – | – | – | – | – | 10 |
| 21A 21 5208 | APET 180508 FR | HU7810 | 16,46 ■ | – | – | – | – | – | – | 10 |
| 21A 21 5210 | APET 180520 FR | HU7810 | 16,46 | – | – | – | – | – | – | 10 |
| 1A 21 5211 | APET 180531 FR | HU7810 | 1646 | – | – | – | – | – | – | 10 |
| 2 21A 21 5212 | APET 180540 FR | HU7810 | , 16,46 | – | – | – | – | – | – | 10 |
| 21B 21 5214 | APET 180508 FR с алмазным покрытием | HB7810 | 78,80 | – | – | – | – | – | – | 1 |
| 21A 21 5220 | APMT180508 ER | HB7520 | – | 16,39 ■ | – | – | – | – | – | 10 |
| 1A 21 5225 | APMT 180504 SR | HB7510 | – | – | 1639 | – | – | – | – | 10 |
| 2 21A 21 5226 | APMT 180508 SR | HB7510 | – | – | , 16,39 | – | – | – | – | 10 |
| 21A 21 5227 | APMT 180512 SR | HB7510 | – | – | 16,39 | – | – | – | – | 10 |
| 21A 21 5223 | APMT 180516 SR | HB7510 | – | – | 16,39 | – | – | – | – | 10 |
| 21A 21 5228 | APMT 180520 SR | HB7510 | – | – | 16,39 | – | – | – | – | 10 |
| 1A 21 5224 | APMT 180524 SR | HB7510 | – | – | 1639 | – | – | – | – | 10 |
| 2 21A 21 5229 | APMT 180531 SR | HB7510 | – | – | , 16,39 | – | – | – | – | 10 |
| 21A 21 5231 | APMT 180504 SR | HB7520 | – | – | 16,39 | – | – | – | – | 10 |
| 21A 21 5232 | APMT 180508 SR | HB7520 | – | – | 16,39 ■ | – | – | – | – | 10 |
| 21A 21 5238 | APMT 180512 SR | HB7520 | – | – | 16,39 | – | – | – | – | 10 |
| 21A 21 5240 | APMT 180516 SR | HB7520 | – | – | 16,39 | – | – | – | – | 10 |
| 21A 21 5239 | APMT 180520 SR | HB7520 | – | – | 16,39 | – | – | – | – | 10 |
| 21A 21 5242 | APMT 180524 SR | HB7520 | – | – | 16,39 | – | – | – | – | 10 |
| 21A 21 5241 | APMT 180531 SR | HB7520 | – | – | 16,39 | – | – | – | – | 10 |
| 21A 21 5243 | APMT 180504 ER | HB7630 | – | – | – | 16,39 | – | – | – | 10 |
| 21A 21 5244 | APMT180508 ER | HB7630 | – | – | – | 16,39 ■ | – | – | – | 10 |
| 21A 21 5250 | APMT 180512 ER | HB7630 | – | – | – | 16,39 | – | – | – | 10 |
| 21A 21 5251 | APMT 180516 ER | HB7630 | – | – | – | 16,39 | – | – | – | 10 |
| 1A 21 5252 | APMT 180520 ER | HB7630 | – | – | – | 1639 | – | – | – | 10 |
| 2 21A 21 5255 | APMT 180524 ER | HB7630 | – | – | – | , 16,39 | – | – | – | 10 |
| 21A 21 5280 | APMT 180504 ER | HB8630 | – | – | – | 16,39 | – | – | – | 10 |
| 21A 21 5281 | APMT180508 ER | HB8630 | – | – | – | 16,39 | – | – | – | 10 |
| 21A 21 5282 | APMT 180512 ER | HB8630 | – | – | – | 16,39 | – | – | – | 10 |
| 1A 21 5283 | APMT 180516 ER | HB8630 | – | – | – | 1639 | – | – | – | 10 |
| 2 21A 21 5284 | APMT 180520 ER | HB8630 | – | – | – | , 16,39 | – | – | – | 10 |
| 21A 21 5285 | APMT 180524 ER | HB8630 | – | – | – | 15,97 | – | – | – | 10 |
| 21A 21 5253 | HB7930 | – | – | – | – | 16,39 | – | – | 10 | |
| 21A 21 5254 | APMT180508 ER | HB7935 | – | – | – | – | 16,39 | – | – | 10 |
| 1A 21 5256 | HB7730 | – | – | – | – | – | 1639 | – | 10 | |
| 2 21A 21 5257 | APMT 180512 ER | HB7730 | – | – | – | – | – | , 16,39 | – | 10 |
| 1A 21 5262 | APMT 180508 TR | HB7520 | – | – | – | – | – | – | 1639 ■ | 10 |
| 2 21A 21 5268 | APMT 180512 TR | HB7520 | – | – | – | – | – | – | , 16,39 | 10 |
| 21A 21 5274 | APMT 180516 TR | HB7520 | – | – | – | – | – | – | 16,39 | 10 |
| 21A 21 5275 | APMT 180520 TR | HB7520 | – | – | – | – | – | – | 16,39 | 10 |
| 21A 21 5277 A | APMT 180524 TR | HB7520 | – | – | – | – | – | – | 16,39 | 10 |
| 21 21 5276 fz | APMT 180531 TR | HB7520 мм | – 0,2 | – 0,15 | – 0,25 | – 0,2 | – 0,17 | – 0,2 | 16,39 – | 10 |
