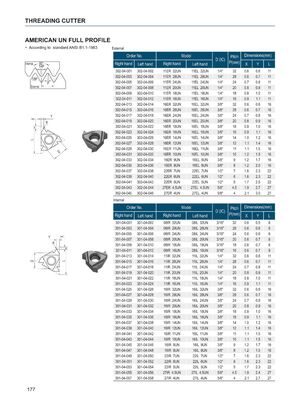

РЕЗЬБОНАРЕЗНОЙ ИНСТРУМЕНТ
АМЕРИКАНСКАЯ РЕЗЬБА UN ПОЛНОГО ПРОФИЛЯ
По стандарту ANSI B1.1-1983
Наружная резьба
| Order No. (правое) | Order No. (левое) | Модель (правое) | Модель (левое) | D (IC) | Шаг P | Y | L | |
|---|---|---|---|---|---|---|---|---|
| 302-04-001 | 302-04-002 | 11ER 32UN | 11EL 32UN | 1/4" | 32 | 0.6 | 0.6 | 11 |
| 302-04-003 | 302-04-004 | 11ER 28UN | 11EL 28UN | 1/4" | 28 | 0.6 | 0.7 | 11 |
| 302-04-005 | 302-04-006 | 11ER 24UN | 11EL 24UN | 1/4" | 24 | 0.7 | 0.8 | 11 |
| 302-04-007 | 302-04-008 | 11ER 20UN | 11EL 20UN | 1/4" | 20 | 0.8 | 0.9 | 11 |
| 302-04-009 | 302-04-010 | 11ER 18UN | 11EL 18UN | 1/4" | 18 | 0.8 | 1.0 | 11 |
| 302-04-011 | 302-04-012 | 11ER 16UN | 11EL 16UN | 1/4" | 16 | 0.9 | 1.1 | 11 |
| 302-04-013 | 302-04-014 | 16ER 32UN | 16EL 32UN | 3/8" | 32 | 0.6 | 0.6 | 16 |
| 302-04-015 | 302-04-016 | 16ER 28UN | 16EL 28UN | 3/8" | 28 | 0.6 | 0.7 | 16 |
| 302-04-017 | 302-04-018 | 16ER 24UN | 16EL 24UN | 3/8" | 24 | 0.7 | 0.8 | 16 |
| 302-04-019 | 302-04-020 | 16ER 20UN | 16EL 20UN | 3/8" | 20 | 0.8 | 0.9 | 16 |
| 302-04-021 | 302-04-022 | 16ER 18UN | 16EL 18UN | 3/8" | 18 | 0.8 | 1.0 | 16 |
| 302-04-023 | 302-04-024 | 16ER 16UN | 16EL 16UN | 3/8" | 16 | 0.9 | 1.1 | 16 |
| 302-04-025 | 302-04-026 | 16ER 14UN | 16EL 14UN | 3/8" | 14 | 1.0 | 1.2 | 16 |
| 302-04-027 | 302-04-028 | 16ER 12UN | 16EL 12UN | 3/8" | 12 | 1.1 | 1.4 | 16 |
| 302-04-029 | 302-04-030 | 16ER 11UN | 16EL 11UN | 3/8" | 11 | 1.1 | 1.5 | 16 |
| 302-04-031 | 302-04-032 | 16ER 10UN | 16EL 10UN | 3/8" | 10 | 1.2 | 1.5 | 16 |
| 302-04-033 | 302-04-034 | 16ER 9UN | 16EL 9UN | 3/8" | 9 | 1.2 | 1.7 | 16 |
| 302-04-035 | 302-04-036 | 16ER 8UN | 16EL 8UN | 3/8" | 8 | 1.2 | 2.0 | 16 |
| 302-04-037 | 302-04-038 | 22ER 7UN | 22EL 7UN | 1/2" | 7 | 1.6 | 2.3 | 22 |
| 302-04-039 | 302-04-040 | 22ER 6UN | 22EL 6UN | 1/2" | 6 | 1.6 | 2.3 | 22 |
| 302-04-041 | 302-04-042 | 22ER 5UN | 22EL 5UN | 1/2" | 5 | 1.7 | 2.5 | 22 |
| 302-04-043 | 302-04-044 | 27ER 4.5UN | 27EL 4.5UN | 5/8" | 4.5 | 1.9 | 2.7 | 27 |
| 302-04-045 | 302-04-046 | 27ER 4UN | 27EL 4UN | 5/8" | 4 | 2.1 | 3.0 | 27 |
Внутренняя резьба
| Order No. (правое) | Order No. (левое) | Модель (правое) | Модель (левое) | D (IC) |
|---|---|---|---|---|
| 301-04-001 | 301-04-002 | 08IR 32UN | 08IL 32UN | 3/16" |
| 301-04-003 | 301-04-004 | 08IR 28UN | 08IL 28UN | |
| 301-04-005 | 301-04-006 | 08IR 24UN | 08IL 24UN | |
| 301-04-007 | 301-04-008 | 08IR 20UN | 08IL 20UN | 3/16" |
| 301-04-009 | 301-04-010 | 08IR 18UN | 08IL 18UN | 3/16" |
| 301-04-011 | 301-04-012 | 08IR 16UN | 08IL 16UN | 3/16" |
| 301-04-013 | 301-04-014 | 11IR 32UN | 11IL 32UN | |
| 301-04-015 | 301-04-016 | 11IR 28UN | 11IL 28UN | |
| 301-04-017 | 301-04-018 | 11IR 24UN | 11IL 24UN | |
| 301-04-019 | 301-04-020 | 11IR 20UN | 11IL 20UN | |
| 301-04-021 | 301-04-022 | 11IR 18UN | 11IL 18UN | |
| 301-04-023 | 301-04-024 | 11IR 16UN | 11IL 16UN | |
| 301-04-025 | 301-04-026 | 16IR 32UN | 16IL 32UN | |
| 301-04-027 | 301-04-028 | 16IR 28UN | 16IL 28UN | |
| 301-04-029 | 301-04-030 | 16IR 24UN | 16IL 24UN | |
| 301-04-031 | 301-04-032 | 16IR 20UN | 16IL 20UN | |
| 301-04-033 | 301-04-034 | 16IR 18UN | 16IL 18UN | |
| 301-04-035 | 301-04-036 | 16IR 16UN | 16IL 16UN | |
| 301-04-037 | 301-04-038 | 16IR 14UN | 16IL 14UN | |
| 301-04-039 | 301-04-040 | 16IR 12UN | 16IL 12UN | 3/8" |
| 301-04-041 | 301-04-042 | 16IR 11UN | 16IL 11UN | 3/8" |
| 301-04-043 | 301-04-044 | 16IR 10UN | 16IL 10UN | 3/8" |
| 301-04-045 | 301-04-046 | 16IR 9UN | 16IL 9UN | |
| 301-04-047 | 301-04-048 | 16IR 8UN | 16IL 8UN | |
| 301-04-049 | 301-04-050 | 22IR 7UN | 22IL 7UN | |
| 301-04-051 | 301-04-052 | 22IR 6UN | 22IL 6UN | |
| 301-04-053 | 301-04-054 | 22IR 5UN | 22IL 5UN | |
| 301-04-055 | 301-04-056 | 27IR 4.5UN | 27IL 4.5UN | |
| 301-04-057 | 301-04-058 | 27IR 4UN | 27IL 4UN |
