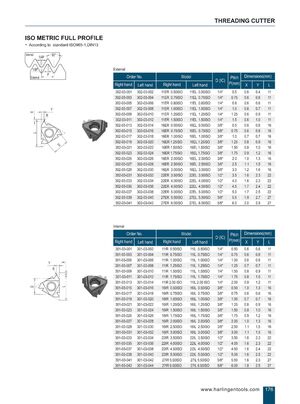

Общий каталог Harlingen 2024 - страница 177
Навигация
Каталог Harlingen самоцентрирующиеся тиски и системы нулевого базирования
Каталог Harlingen системы нулевого базирования
Каталог Harlingen инструмент для пресс-форм 2024
Каталог Harlingen PSC-оправки (CAPTO совместимые)
Каталог Harlingen статические держатели режущих инструментов блочного типа
РЕЗЬБОНАРЕЗНОЙ ИНСТРУМЕНТ
МЕТРИЧЕСКАЯ РЕЗЬБА ISO ПОЛНОГО ПРОФИЛЯ
По стандарту IS0965-1, DIN13
Наружная резьба
| Order No. (правое) | Order No. (левое) | Модель (правое) | Модель (левое) | D (IC) | Шаг P, мм | Y | L | |
|---|---|---|---|---|---|---|---|---|
| 302-03-001 | 302-03-002 | 11ER 0.50ISO | 11EL 0.50ISO | 1/4" | 0.5 | 0.6 | 0.4 | 11 |
| 302-03-003 | 302-03-004 | 11ER 0.75ISO | 11EL 0.75ISO | 1/4" | 0.75 | 0.6 | 0.6 | 11 |
| 302-03-005 | 302-03-006 | 11ER 0.80ISO | 11EL 0.80ISO | 1/4" | 0.8 | 0.6 | 0.6 | 11 |
| 302-03-007 | 302-03-008 | 11ER 1.00ISO | 11EL 1.00ISO | 1/4" | 1.0 | 0.6 | 0.7 | 11 |
| 302-03-009 | 302-03-010 | 11ER 1.25ISO | 11EL 1.25ISO | 1/4" | 1.25 | 0.6 | 0.9 | 11 |
| 302-03-011 | 302-03-012 | 11ER 1.50ISO | 11EL 1.50ISO | 1/4" | 1.5 | 0.6 | 1.0 | 11 |
| 302-03-013 | 302-03-014 | 16ER 0.50ISO | 16EL 0.50ISO | 3/8" | 0.5 | 0.6 | 0.6 | 16 |
| 302-03-015 | 302-03-016 | 16ER 0.75ISO | 16EL 0.75ISO | 3/8" | 0.75 | 0.6 | 0.6 | 16 |
| 302-03-017 | 302-03-018 | 16ER 1.00ISO | 16EL 1.00ISO | 3/8" | 1.0 | 0.7 | 0.7 | 16 |
| 302-03-019 | 302-03-020 | 16ER 1.25ISO | 16EL 1.25ISO | 3/8" | 1.25 | 0.8 | 0.9 | 16 |
| 302-03-021 | 302-03-022 | 16ER 1.50ISO | 16EL 1.50ISO | 3/8" | 1.50 | 0.8 | 1.0 | 16 |
| 302-03-023 | 302-03-024 | 16ER 1.75ISO | 16EL 1.75ISO | 3/8" | 1.75 | 0.9 | 1.2 | 16 |
| 302-03-025 | 302-03-026 | 16ER 2.00ISO | 16EL 2.00ISO | 3/8" | 2.0 | 1.0 | 1.3 | 16 |
| 302-03-027 | 302-03-028 | 16ER 2.50ISO | 16EL 2.50ISO | 3/8" | 2.5 | 1.1 | 1.5 | 16 |
| 302-03-029 | 302-03-030 | 16ER 3.00ISO | 16EL 3.00ISO | 3/8" | 3.0 | 1.2 | 1.6 | 16 |
| 302-03-031 | 302-03-032 | 22ER 3.50ISO | 22EL 3.50ISO | 1/2" | 3.5 | 1.6 | 2.3 | 22 |
| 302-03-033 | 302-03-034 | 22ER 4.00ISO | 22EL 4.00ISO | 1/2" | 4.0 | 1.6 | 2.3 | 22 |
| 302-03-035 | 302-03-036 | 22ER 4.50ISO | 22EL 4.50ISO | 1/2" | 4.5 | 1.7 | 2.4 | 22 |
| 302-03-037 | 302-03-038 | 22ER 5.00ISO | 22EL 5.00ISO | 1/2" | 5.0 | 1.7 | 2.5 | 22 |
| 302-03-039 | 302-03-040 | 27ER 5.50ISO | 27EL 5.50ISO | 5/8" | 5.5 | 1.9 | 2.7 | 27 |
| 302-03-041 | 302-03-042 | 27ER 6.00ISO | 27EL 6.00ISO | 5/8" | 6.0 | 2.0 | 2.9 | 27 |
Внутренняя резьба
| Order No. (правое) | Order No. (левое) | Модель (правое) | Модель (левое) | D (IC) | Шаг P, мм | Y | L | |
|---|---|---|---|---|---|---|---|---|
| 301-03-001 | 301-03-002 | 11IR 0.50ISO | 11IL 0.50ISO | 1/4" | 0.50 | 0.6 | 0.6 | 11 |
| 301-03-003 | 301-03-004 | 11IR 0.75ISO | 11IL 0.75ISO | 1/4" | 0.75 | 0.6 | 0.6 | 11 |
| 301-03-005 | 301-03-006 | 11IR 1.00ISO | 11IL 1.00ISO | 1/4" | 1.00 | 0.6 | 0.6 | 11 |
| 301-03-007 | 301-03-008 | 11IR 1.25ISO | 11IL 1.25ISO | 1/4" | 1.25 | 0.7 | 0.7 | 11 |
| 301-03-009 | 301-03-010 | 11IR 1.50ISO | 11IL 1.50ISO | 1/4" | 1.50 | 0.8 | 0.9 | 11 |
| 301-03-011 | 301-03-012 | 11IR 1.75ISO | 11IL 1.75ISO | 1/4" | 1.75 | 0.8 | 1.0 | 11 |
| 301-03-013 | 301-03-014 | 11IR 2.00ISO | 11IL 2.00ISO | 1/4" | 2.00 | 0.9 | 1.2 | 11 |
| 301-03-015 | 301-03-016 | 16IR 0.50ISO | 16IL 0.50ISO | 3/8" | 0.50 | 1.0 | 1.3 | 16 |
| 301-03-017 | 301-03-018 | 16IR 0.75ISO | 16IL 0.75ISO | 3/8" | 0.75 | 0.6 | 0.6 | 16 |
| 301-03-019 | 301-03-020 | 16IR 1.00ISO | 16IL 1.00ISO | 3/8" | 1.00 | 0.7 | 0.7 | 16 |
| 301-03-021 | 301-03-022 | 16IR 1.25ISO | 16IL 1.25ISO | 3/8" | 1.25 | 0.8 | 0.9 | 16 |
| 301-03-023 | 301-03-024 | 16IR 1.50ISO | 16IL 1.50ISO | 3/8" | 1.50 | 0.8 | 1.0 | 16 |
| 301-03-025 | 301-03-026 | 16IR 1.75ISO | 16IL 1.75ISO | 3/8" | 1.75 | 0.9 | 1.2 | 16 |
| 301-03-027 | 301-03-028 | 16IR 2.00ISO | 16IL 2.00ISO | 3/8" | 2.00 | 1.0 | 1.3 | 16 |
| 301-03-029 | 301-03-030 | 16IR 2.50ISO | 16IL 2.50ISO | 3/8" | 2.50 | 1.1 | 1.5 | 16 |
| 301-03-031 | 301-03-032 | 16IR 3.00ISO | 16IL 3.00ISO | 3/8" | 3.00 | 1.1 | 1.5 | 16 |
| 301-03-033 | 301-03-034 | 22IR 3.50ISO | 22IL 3.50ISO | 1/2" | 3.50 | 1.6 | 2.3 | 22 |
| 301-03-035 | 301-03-036 | 22IR 4.00ISO | 22IL 4.00ISO | 1/2" | 4.00 | 1.6 | 2.3 | 22 |
| 301-03-037 | 301-03-038 | 22IR 4.50ISO | 22IL 4.50ISO | 1/2" | 4.50 | 1.6 | 2.4 | 22 |
| 301-03-039 | 301-03-040 | 22IR 5.00ISO | 22IL 5.00ISO | 1/2" | 5.00 | 1.6 | 2.5 | 22 |
| 301-03-041 | 301-03-042 | 27IR 5.50ISO | 27IL 5.50ISO | 5/8" | 5.50 | 1.6 | 2.3 | 27 |
| 301-03-043 | 301-03-044 | 27IR 6.00ISO | 27IL 6.00ISO | 5/8" | 6.00 | 1.8 | 2.5 | 27 |
