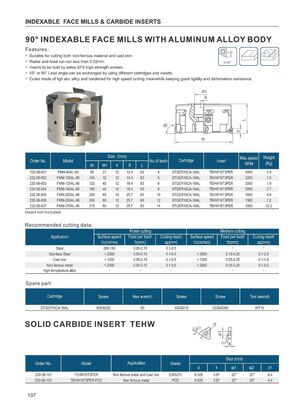

INDEXABLE FACE MILLS & CARBIDE INSERTS 90 ° INDEXABLE FACE MILLS WITH ALUMINUM ALLOY BODY Features: • Suitable for cutting both non-ferrous material and cast iron. • Radial and Axial run-out less than 0.02 mm . Kr=90 ° • Inserts to be hold by swiss SFS high strength screws. • 45° or 90° Lead angle can be exchanged by using different cartridges and inserts. • Cutter made of ligh alu. alloy and hardened for high speed cutting meanwhile keeping good rigidity and deformation resistance. dm B 3» IB B \j 03 dc Order No. Cartridge Insert Max.speed RPM Weight (Kg) STGER16CA -16AL STGER16CA -16AL STGER16CA -16AL STGER16CA -16AL STGER16CA -16AL STGER16CA -16AL STGER16CA -16AL TEHW16T3PER TEHW16T3PER TEHW16T3PER TEHW16T3PER TEHW16T3PER TEHW16T3PER TEHW16T3PER 4000 3200 2500 2000 1600 1300 1000 0.9 1.0 1.9 2.7 4.6 7.2 10.2 No . of teeth 232- 58-001 232-58-002 232-58-003 232-58 -004 232-58 -005 232-58 -006 232-58-007 FMM-80AL-90 FMM-100AL-90 FMM-125AL-90 FMM-160AL- 90 FMM-200AL-90 FMM-250AL- 90 FMM-315AL-90 100 125 160 200 250 315 Insert not included Recommended cutting data : Application Surface speed Vc ( m/min) Finish cutting Feed per tooth fz(mm) Cutting depth ap(mm) Steel Stainless Steel Cast iron Non ferrous metal High temperature alloy 280-150 < 2000 < 1200 < 2000 0.05-0.15 0.05-0.15 0.05-0.15 0.05-0.10 0.1-0.5 0.1-0.5 0.1-0.5 0.1-0.5 Surface speed Vc(m/min) Medium cutting Feed per tooth fz(mm) Cutting depth ap(mm) 0.15-0.25 0.05-0.25 0.05-0.25 0.1-2.0 0.1-1.0 0.1-0.5 < 2000 < 1200 < 2000 Spare part Cartridge Screw Flex wrench Screw Screw Torx wrench STGER16CA-16AL MS06025 S5 AS06019 C035A08S WT15 SOLID CARBIDE INSERT TEHW Q2 S Size (mm) Order No. Model Application 230-58-101 230-58-102 TEHW16 T3PER TEHW16T3PER-PCD Non ferrous metal and Cast iron Non ferrous metal 137 EW5215 PCD
