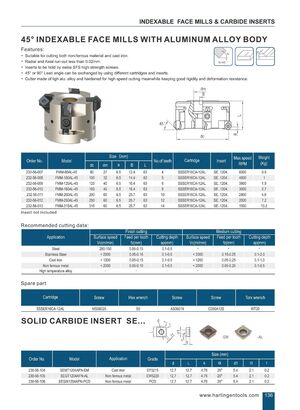

INDEXABLE FACE MILLS & CARBIDE INSERTS 45 ° INDEXABLE FACE MILLS WITH ALUMINUM ALLOY BODY Features: Kr • Suitable for cutting both non-ferrous material and cast iron. • Radial and Axial run-out less than 0.02 mm . Kr=45 ° • Inserts to be hold by swiss SFS high strength screws. • 45° or 90° Lead angle can be exchanged by using different cartridges and inserts. • Cutter made of ligh alu. alloy and hardened for high speed cutting meanwhile keeping good rigidity and deformation resistance. \ dm B tu L £HI § (SI 45‘ CD dc Order No. Cartridge Insert Max.speed RPM Weight (Kg) SSSER16CA-12AL SSSER 16CA -12AL SSSER16CA -12AL SSSER16CA-12AL SSSER16CA-12AL SSSER16CA -12AL SSSER16CA-12AL SE..1204.. SE..1204.. SE..1204.. SE..1204.. SE..1204.. SE..1204.. SE..1204.. 6000 4800 3800 3000 2400 2000 1500 0.9 1 1.9 2.7 4.6 7.2 10.2 No .of teeth 232-56-007 232-56-008 232-56-009 232-56-010 232-56-011 232-56-012 232-56-013 FMM-80AL-45 FMM-100AL-45 FMM-125AL-45 FMM-160AL-45 FMM-200AL-45 FMM-250AL-45 FMM-315AL-45 100 125 160 200 250 315 Insert not included Recommended cutting data : Application Surface speed Vc(m/min) Finish cutting Feed per tooth fz(mm) Cutting depth ap(mm) Steel Stainless Steel Cast iron Non ferrous metal High temperature alloy 280-150 < 2000 < 1200 < 2000 0.05-0.15 0.05-0.15 0.05-0.15 0.05 -0.10 0.1-0.5 0.1-0.5 0.1-0.5 0.1-0.5 Surface speed Vc(m/min) Medium cutting Feed per tooth fz(mm) Cutting depth ap(mm) 0.15-0.25 0.05-0.25 0.05-0.25 0.1-2.0 0.1-1.0 0.1-0.5 < 2000 < 1200 < 2000 Spare part Cartridge Screw Flex wrench Screw Screw Torx wrench SSSER16CA-12AL MS06025 S5 AS06019 C050A12S WT20 SOLID CARBIDE INSERT SE ... -EM -AL Size (mm) Order No. Model Application Grade 230-56-104 230- 56-105 230-56-106 SEMT1204AFN-EM SEGT1204AFN-AL SEGW1204AFN- PCD Cast iron Non ferrous metal Non ferrous metal EP3215 EW5220 PCD r 12.7 12.7 12.7 12.7 12.7 12.7 4.76 4.76 4.76 20° 20° 20° 5.4 5.4 5.4 2.1 2.1 2.1 www. harlingentools . com 0.2 0.2 0.2 136
