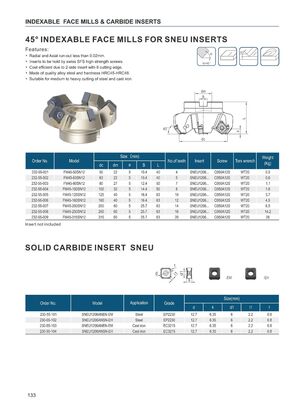

Общий каталог Harlingen 2024 - страница 134

INDEXABLE FACE MILLS & CARBIDE INSERTS 45 ° INDEXABLE FACE MILLS FOR SNEU INSERTS Features: 45, • Radial and Axial run-out less than 0.02mm . • Inserts to be hold by swiss SFS high strength screws. • Cost efficient due to 2-side insert with 8 cutting edge. • Made of quality alloy steel and hardness HRC45-HRC48. • Suitable for medium to heavy cutting of steel and cast iron. V \ dm B -- - j T e 03 dc Order No. 232- 55-001 232-55-002 232-55-003 232-55-004 232-55-005 232-55-006 232-55-007 232-55-008 232-55-009 No . of teeth FM45-50SN12 FM45-63SN12 FM45-80SN12 FM45-100SN12 FM45-125SN12 FM45-160SN12 FM45-200SN12 FM45-250SN12 FM45-315SN12 100 125 160 200 250 315 Insert Screw Torx wrench Weight (Kg) SNEU1206... SNEU1206... SNEU1206... SNEU1206... SNEU1206... SNEU1206... SNEU1206... SNEU1206... SNEU1206... C050A12S C050A12S C050A12S C050A12S C050A12S C050A12S C050A12S C050A12S C050A12S WT20 WT20 WT20 WT20 WT20 WT20 WT20 WT20 WT20 0.5 0.6 1.1 1.8 3.7 4.5 6.5 14.2 26 Insert not included SOLID CARBIDE INSERT SNEU -EM 133 -EH Size(mm) Order No. Model Application Grade 230-55-101 230-55-102 230-55-103 230-55-104 SNEU1206ANEN- EM SNEU1206ANSN-EH SNEU1206ANEN- EM SNEU1206ANSN-EH Steel Steel Cast iron Cast iron EP 2230 EP2230 EC3215 EC3215 r 12.7 12.7 12.7 12.7 6.35 6.35 6.35 6.35 6 6 6 6 2.2 2.2 2.2 2.2 0.8 0.8 0.8 0.8
