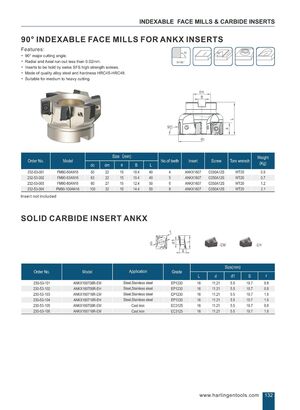

INDEXABLE FACE MILLS & CARBIDE INSERTS 90 ° INDEXABLE FACE MILLS FOR ANKX INSERTS Features: Kr 'S • 90° major cutting angle. • Radial and Axial run-out less than 0.02 mm . • Inserts to be hold by swiss SFS high strength screws. • Made of quality alloy steel and hardness HRC45-HRC48. • Suitable for medium to heavy cutting . Kr=90 ° dm B Order No. 232-53-001 232-53-002 232-53-003 232-53-004 No .of teeth FM90-50AN16 FM90-63AN16 FM90-80AN16 FM90-100AN16 Insert Screw Torx wrench Weight (Kg) ANKX1607 ANKX1607 ANKX1607 ANKX1607 C050A12S C050A12S C050A12S C050A12S WT20 WT20 WT20 WT20 0.5 0.7 1.2 2.1 Insert not included SOLID CARBIDE INSERT ANKX -EH Size(mm) Order No. Model Application ANKX160708R-EM ANKX160708R-EH ANKX160716R-EM ANKX160716R-EH ANKX160708R- EM ANKX160716R-EM Steel,Stainless steel Steel,Stainless steel Steel,Stainless steel Steel,Stainless steel Grade r L 230-53-101 230-53-102 230-53-103 230-53-104 230-53-105 230-53-106 Cast iron Cast iron EP1230 EP1230 EP1230 EP1230 EC3125 EC3125 16 16 16 16 16 16 11.21 11.21 11.21 11.21 11.21 11.21 5.5 5.5 5.5 10.7 10.7 10.7 10.7 10.7 10.7 www. harlingentools . com 0.8 0.8 1.6 1.6 0.8 1.6 132
