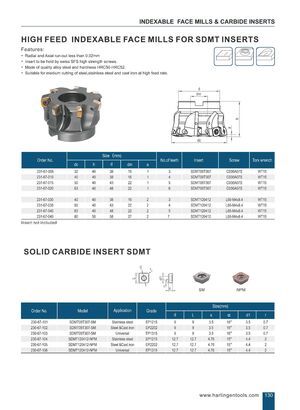

INDEXABLE FACE MILLS & CARBIDE INSERTS HIGH FEED INDEXABLE FACE MILLS FOR SDMT INSERTS Features: • Radial and Axial run-out less than 0.02mm • Insert to be hold by swiss SFS high strength screws . • Made of quality alloy steel and hardness HRC50-HRC 52. • Suitable for medium cutting of steel stainless steel and cast iron at high feed rate. . d dm cu dc Order No. No.of teeth 231-67-005 231-67-010 231-67-015 231-67-020 231-67-030 231-67-035 231-67-040 231-67-045 40 50 63 80 h dm 40 40 40 40 16 16 22 22 40 40 40 50 16 22 22 27 3 4 5 6 2 2 2 2 3 4 5 7 Screw Torx wrench SDMT09T307 SDMT09T 307 SDMT09T307 SDMT09T307 C030A07S C030A07S C030A07S C030A07S WT15 WT15 WT15 WT15 SDMT120412 SDMT120412 SDMT120412 SDMT120412 L60-M4x8.4 L60-M4x8.4 L60-M4x8.4 L60-M4 x8.4 WT15 WT15 WT15 WT15 Insert Insert not included SOLID CARBIDE INSERT SDMT d O. a 230-67-101 230-67-102 230-67-103 230-67-104 230-67-105 230-67-106 SDMT09T307-SM SDMT09T307-SM SDMT09T307-SM SDMT120412-NPM SDMT120412-NPM SDMT120412-NPM Stainless steel Steel &Cast iron Universal Stainless steel Steel &Cast iron Universal EP1215 EP 2202 EP1315 EP1215 EP 2202 EP1315 s NPM SM 9 9 9 12.7 12.7 12.7 9 9 9 12.7 12.7 12.7 3.5 3.5 3.5 4.76 4.76 4.76 16° 16° 16° 15° 15° 15° 3.5 3.5 3.5 4.4 4.4 4.4 www. harlingentools . com 0.7 0.7 0.7 2 2 2 130
