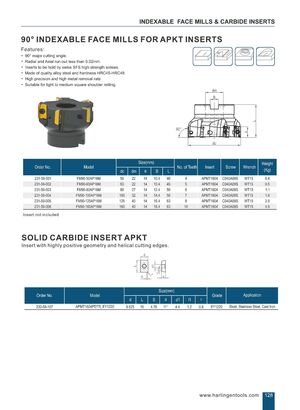

INDEXABLE FACE MILLS & CARBIDE INSERTS 90 ° INDEXABLE FACE MILLS FOR APKT INSERTS Features: • 90° major cutting angle. • Radial and Axial run-out less than 0.02 mm . • Inserts to be hold by swiss SFS high strength screws. • Made of quality alloy steel and hardness HRC45-HRC48. • High precision and high metal removal rate. • Suitable for light to medium square shoulder milling. dm B CO dc Size(mm) Order No. Model 231-59-001 231-59-002 231-59-003 231-59-004 231-59-005 231-59-006 FM90-50AP16M FM90-63AP16M FM90- 80AP16M FM90-100AP16M FM90-125AP16M FM90-160AP16M dm 50 63 80 100 125 160 B 22 22 27 32 40 40 10.4 10.4 12.4 14.4 16.4 16.4 14 14 14 14 14 14 40 45 50 50 63 63 No. of Teeth Insert Screw Wrench Weight (Kg) 4 5 APMT1604 APMT1604 APMT1604 APMT1604 APMT1604 APMT1604 C040A09S C040A09S C040A09S C040A09S C040A09S C040A09S WT15 WT15 WT15 WT15 WT15 WT15 0.4 0.6 1.1 1.9 3.9 4.9 6 7 8 10 Insert not included SOLID CARBIDE INSERT APKT Insert with highly positive geometry and helical cutting edges . d —' T3. n \ / s. Size(mm) Application Order No. 230-59-107 APMT1604PDTR EY1220 EY1220 Steel, Stainless Steel, Cast Iron www. harlingentools . com 128
